Ubiquiti UAP-IW-HD UniFi IW HD – Wi-Fi 5 (802.11ac) Wave 2, Up to 2033 Mb/s, Multi-User MIMO Technology, 2.4 GHz / 5.0 GHz Dual Band, In-Wall Wi-Fi Access Point Price in Qatar

Antenna Gain: 1.8 to 6 dBi
WLAN Mode: Wi-Fi 5 (802.11ac)
Number of Antennas: 4
Wireless Frequency Bands: 2.4 GHz, 5 GHz Dual-Band

SKU: UAP-IW-HD Category: Ubiquiti Indoor Wifi

Product Description

Ubiquiti UniFi In-Wall HD 802.11ac Wave 2 WiFi Access Point (UAP-IW-HD)

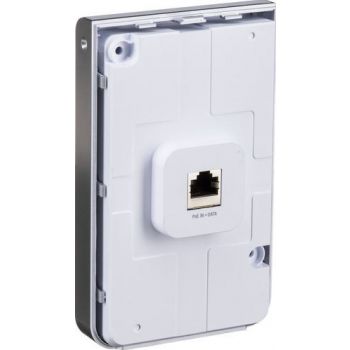

The Ubiquiti UniFi UAP-IW-HD is a high-density In-Wall access point with a refined industrial design. It can be easily installed using the included mounting hardware. The sleek and elegant UniFi UAP-IW-HD transforms an Ethernet wall connection into a simultaneous, dual-band 802.11ac WiFi Access Point with 4×4 MIMO technology.

Ubiquiti UAP-IW-HD Key Features

Simultaneous Dual-Band 4×4 Multi-User MIMO
Four-Stream 802.11ac Wave 2 Technology
802.3af/802.3at PoE Compatibility

Integrated Gigabit Switch
Four ports are available for briding – one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+ switch.

Superior Processing Power
The UAP-IW-HD is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.

Power over Ethernet (PoE) Standard
The UniFi In-Wall HD can be conveniently powered by an 802.3af or 802.at compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch.

Easy Mounting
The back plate offers multiple mounting holes for use with a variety of 1-gang electrical wall boxes

LED
The unique provisioning LED provides administrator location tracking and alerts for each device.

Secondary Gigabit Ethernet
Four ports are available for bridging – one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+ switch.

Superior Processing Power
The UniFi UAP-IW-HD is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.

General

Brand

UBIQUITI

Model

UAP-IW-HD

Shipping Weight

0.44 Kg

Shipping Dimensions

10.16 cm x 16.00 cm x 4.32 cm

Details

Wireless
Wireless Frequency Bands 2.4 GHz, 5 GHz Dual-Band
Number of Antennas 4
MU-MIMO Support 4 x 4
WLAN Mode Wi-Fi 5 (802.11ac)
Antenna Gain 1.8 to 6 dBi
Transmit Power 23 to 26 dBm
Antenna Placement Internal
Interface
Ports 3 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Pass-Through) PoE
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+
Security
Wireless Security AES, TKIP, WEP, WPA-PSK, WPA2
Management
Supported Clients 200
Throughput 2033 Mb/s Total
2.4 GHz: 300 Mb/s
5 GHz: 1733 Mb/s
Hardware
Supported IEEE Standards 802.1q, 802.3af, 802.3at
Electrical
DC Input Power 44 to 57 VDC
Power Consumption
Environmental
Operating Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 5 to 95%
General
Certifications CE, FCC, IC, as per Manufacturer
Dimensions 5.5 x 3.41 x 1.01″ / 139.7 x 86.61 x 25.65 mm
Weight 7.4 oz / 209.79 g

Antenna Gain

1.8 to 6 dBi

WLAN Mode

Wi-Fi 5 (802.11ac)

Number of Antennas

Wireless Frequency Bands

2.4 GHz, 5 GHz Dual-Band
