Product Description

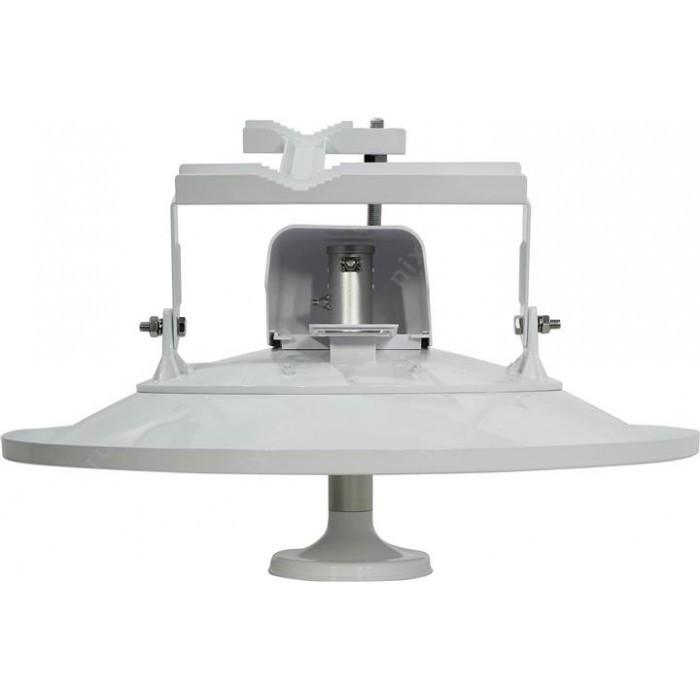

Tp-Link TL-ANT5830MD 5GHz 30dBi 2×2 MIMO Dish Antenna

ANTENNA

Frequency           5.0 ~ 6.0GHz

Impedance         50Ω

Gain  30dBi (Exclude Cable Loss)

VSWR(MAX.)         1.8

HPOL Beamwidth     6° (3dB)

VPOL Beamwidth     6° (3dB)

Elevation Beamwidth 6° (3dB)

Polarization         Horizontal & Vertical

Mounting          Pole Mount

F/B Ratio         34dB Min

Survival Wind Speed 241 Km/h

Standards         RoHS, WEEE

Interfaces         RP-SMA

Dimension         Product Size: 650×650×360 mm

Package Size:           790×710×200 mm

When installed alongside a Pharos Base Station, the TL-ANT5830MD is capable of providing long distance Point-to-Point bridge and network backbaul.
