Product Description

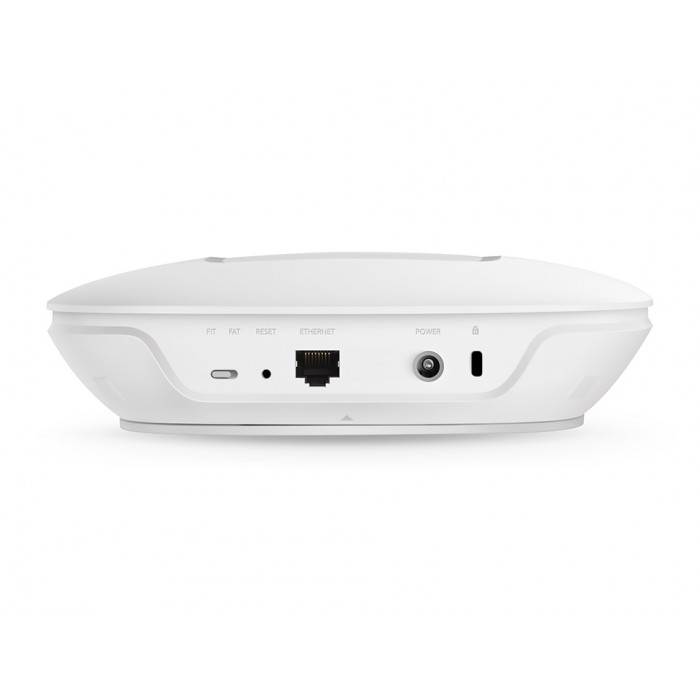

Tp-Link 300Mbps Wireless N Ceiling Mount Access Point

HARDWARE FEATURES

• Interface Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）
• Button Reset, FIT/FAT
• Power Supply PoE or external 9VDC/0.6A power supply
• Power Consumption 5W
• Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
• Antenna Type Internal 2* 3dBi Omni
• Mounting Ceiling /Wall Mounting (Kits included)
• Physical Security Lock Kensington Lock Slot
• Watch Dog Yes

WIRELESS FEATURES

• Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency 2.4-2.4835GHz
• Signal Rate 11n: Up to 300Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)
• Reception Sensitivity 300M: -71dBm@10% PER
• 150M: -75dBm@10% PER
• 54M: -78dBm@10% PER
• 11M: -93dBm@8% PER
• 6M: -92dBm@10% PER
• 1M: -96dBm@8% PER
• Transmission Power CE: <20dBm
• FCC: <26dBm

SOFTWARE FEATURES

• Wireless Functions Multiple SSIDs (Up to 8 SSIDs)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Clientnt
• Wireless Security Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
• SOFTWARE FEATURE IN FAT MODE
• Wireless Functions Multiple SSIDs (Up to 8 SSIDs)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• Wireless Security
• SOFTWARE FEATURES IN FIT MODE
• Wireless Functions Multiple SSIDs (Up to 8 SSIDs)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• WMM
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• Load Balance
