Planet WGS-814HP DIN-rail Unmanaged Gigabit PoE Switch – Price in Qatar

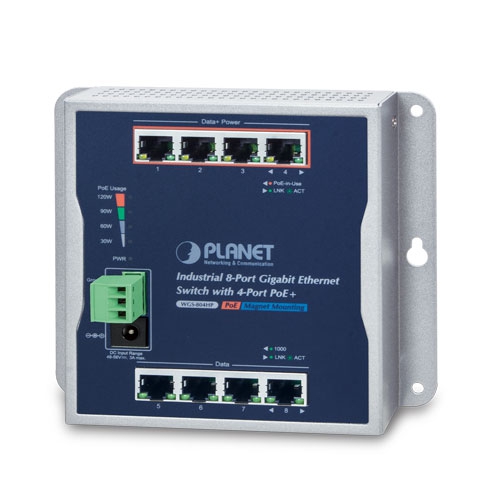

Industrial 8-Port 10/100/1000T Wall-mounted Gigabit Switch with 4-port PoE+.

To further expand the office premises, the additional telephones required could be installed at less cost via the PoE IP telephony system, better than the traditional circuit wiring telephony system. The WGS-814HP PoE+ Switch helps enterprises to create an integrated data, voice, and powered network. The IEEE 802.3af/at compliant IP phones can be installed without the need of an additional power cable because the power can be provided via the standard Ethernet cable from the connected PoE+ Switch. With the WGS-814HP, IP telephony deployment becomes more reliable and cost effective, thus helping enterprises save tremendous cost when upgrading from the traditional telephony system to IP telephony communications infrastructure.

SKU: WGS-814HP Category: Planet Switches

Product Description

Hardware Specifications
Network Connector	8-Port RJ45 for 10/100/1000BASE-T
PoE Inject Port	4-Port with802.3at PoE+ injector function (Port-1 to Port-4)
Switch Architecture	Store and forward
MAC Address Table	4K MAC address table with auto learning function
Switch Fabric	16Gbps / non-blocking
Switch Throughput	11.9Mpps@64Bytes
Jumbo Frame	9Kbytes
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
LED Indicators	Power LED: Power (Green) PoE Power Usage LED: 15W, 30W, 45W, 60W (Amber) PoE Port: PoE-in-Use (Amber) LNK/ACT (Green) 10/100/1000BASE-T Port: LNK/ACT (Green)
ESD Protection	4KV DC
DIP Switch	Selectable operation modes: ■ Standard: IEEE 802.3at PoE+ transmission distance of 100m ■ VLAN: Port-based VLAN ■ Extend: 25-watt PoE transmission distance of 250m at speed of 10Mbps
Connector	DC power jack with 2.0mm central pole
Power Requirements	48~56V DC, 1.5A (max.)
Power Consumption	70 watts / 239BTU
Enclosure	IP30 metal
Dimensions (W x D x H)	148 x 25 x 134 mm
Weight	472g

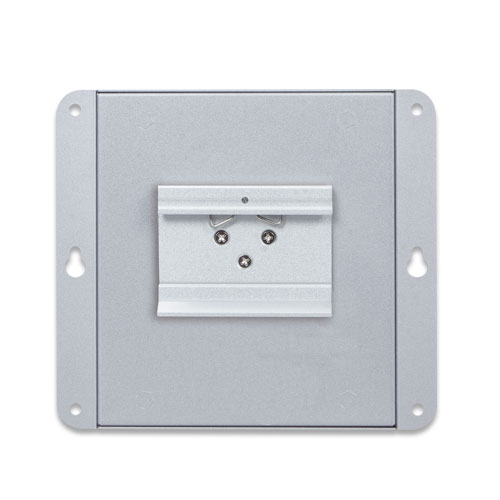

Installation	Fixed wall mounting, magnetic wall mounting and DIN-rail mounting
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus PSE
PoE Power Supply Type	End-span
PoE Power Output	IEEE 802.3af Standard – Per port 48V~56V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard – Per port 50V~56V DC (depending on the power supply), max. 30 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	60 watts (depending on power input)
Max. Number of Class 2 PDs	4
Max. Number of Class 3 PDs	4
Max. Number of Class 4 PDs	2
Standard Conformance
Standard Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet plus IEEE 802.3z Energy Efficient Ethernet
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration)
Environment
Operating	Temperature: -20 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
