Planet WGS-803 Gigabit Ethernet Switch - Price in Qatar

Planet WGS-803 Gigabit Ethernet Switch – Price in Qatar

Industrial 8-Port 10/100/1000T Wall-mount Switch (-10~60 degrees C).

The WGS-803 is equipped with 8 10/100/1000Mbps ports that offer auto MDI / MDIX feature, 16Gbps non-blocking switch fabric and the 8K MAC address table so that wire-speed packets can be transferred safely. The Gigabit ports supporting 9K jumbo packet can handle large amounts of data transmission in a secure topology linking to a backbone switch or high-power servers. The WGS-803 with the slim type IP30 metal case is ideal for most heavy industrial demanding environments.

SKU: WGS-803 Category: Planet Switches

Product Description

Hardware Specifications
Network Connector	8-port RJ45 for 10/100/1000BASE-T
Switch Architecture	Store and forward
MAC Address Table	8K MAC address table with auto learning function
Data Buffer	1Mbit
Switch Fabric	16Gbps / non-blocking
Switch Throughput	11.9Mpps@64bytes
Jumbo Frame	9Kbytes
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
LED Indicators	■ Power LED: – Power (Green) ■ 10/100/1000BASE-T Port: – 1000 (Green) – LNK/ACT (Green)
Connector	■ Removable 3-pin terminal block for power input – Pin 1/2 for DC Power – Pin 3 for earth ground ■ DC power jack with 2.0mm central pole
Power Requirements	12~48V DC, 0.5A (max.) 24V AC, 0.5A(max.)
Power Consumption	6 watts / 20BTU
ESD Protection	6KV DC
EFT Protection	6KV DC
Enclosure	IP30 metal
Dimensions (W x D x H)	148 x 24.2 x 134 mm
Weight	498g

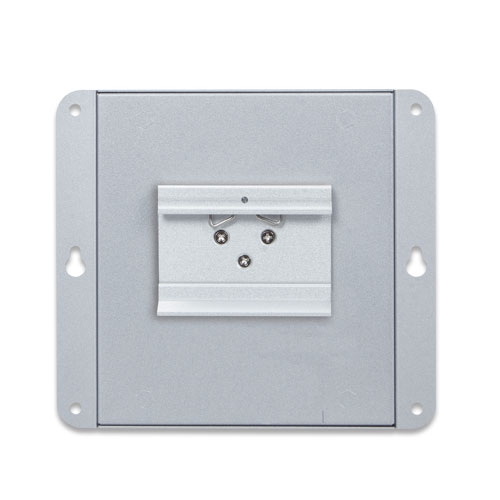

Installation	Wall mount, magnetic wall mount and DIN-rail kit
Standard Conformance
Standard Compliance	IEEE 802.3: Ethernet IEEE 802.3u: Fast Ethernet IEEE 802.3ab: Gigabit Ethernet IEEE 802.3x: Flow Control
Regulation Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Environment
Operating	Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Accessories
Standard Accessories	■ User’s manual x 1 ■ Magnetic kit x 1 ■ DIN-rail kit x 1 ■ Wall-mounted kit x 1 ■ Dust cap x 8 ■ 3-pin terminal block connector x 1
