Planet WGS-4215-8T L2/L4 Managed Gigabit Ethernet Switch – Price in Qatar
Planet WGS-4215-8T L2/L4 Managed Gigabit Ethernet Switch – Price in Qatar

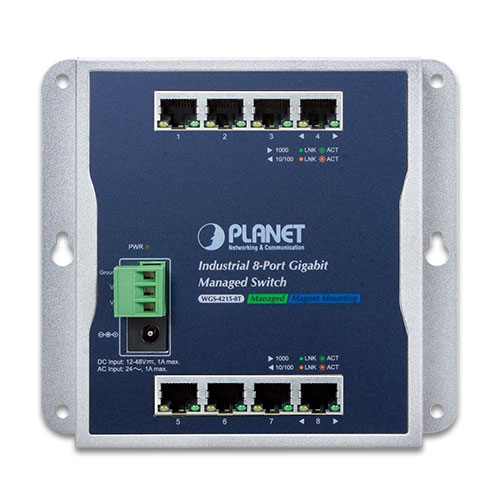

Industrial 8-Port 10/100/1000T Wall-mount Managed Switch (-40~75 degrees C).
The WGS-4215-8T features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet standard, the WGS-4215-8T can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome cameras. The WGS-4215-8T can easily help system integrators with the available network infrastructure to build wireless AP, IP camera and VoIP systems where power can be centrally-controlled.
Product Description
| Hardware Specifications | |
|---|---|
| Copper Ports | 8-Port 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |

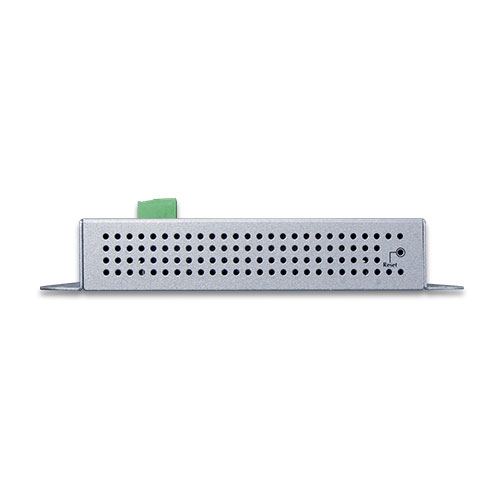

| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | Power LED: Power (Green) 10/100/1000BASE-TX Port: 10/100 LNK/ACT (Orange) 1000 LNK/ACT (Green) |
| Connector | Removable 3-pin terminal block for power input Pin 1/2 for power (Pin 1: V+ / Pin 2: V-) Pin 3 for earth ground DC power jack with 2.0mm central pole |
| Power Requirements | 24V AC,1A (max.) 12~48V DC,1A (max.) |
| Power Consumption/ Dissipation | Max. 7 watts/24 BTU |
| Dimensions (W x D x H) | 148 x 25 x 134 mm |
| Weight | 496g |
| ESD Protection | Contact Discharge 4KV DC Air Discharge 8KV DC |
| Enclosure | IP30 metal |

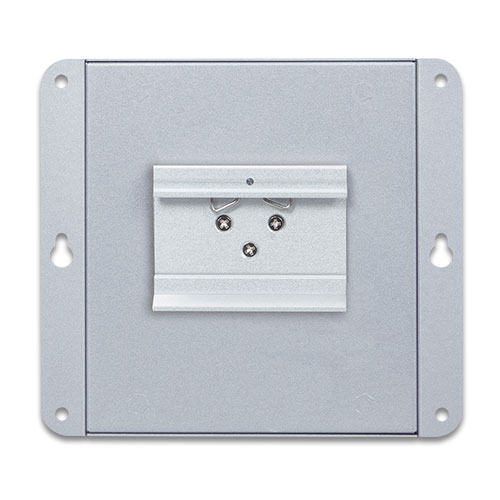

| Installation | Wall mount, magnetic wall mount and DIN-rail kit |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 16Gbps/non-blocking |
| Switch Throughput@64 bytes | 11.9Mpps @64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 10 Kbytes |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tag-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN |
| Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 4 groups with 4 ports per trunk |
| Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | IPv4 IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, up to 256 multicast groups |
| QoS | 8 mapping ID to 8 level priority queues Port Number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress and Egress Rate Limit per port bandwidth control |
| Ring | Supports ERPS, and complies with ITU-T G.8032 |
| Security Functions | |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE |
| Port Security | IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
| MAC Security | IP-MAC port binding MAC filter Static MAC address |
| Enhanced Security | DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
| Management Functions | |
| Basic Management Interfaces | Web browser; Telnet; SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLS v1.2, SNMPv3 |
| Switch Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP Remote/Local Syslog System log LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU G.8032 ERPS Ring |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Accessories | |
| Standard Accessories | Quick Installation Guide x 1 3-pin Terminal Block Connector x 1 Wall-mounted Kit x 1 DIN-rail Kit x 1 Magnet Kit x 1 RJ45 Dust Cap x 8 |
