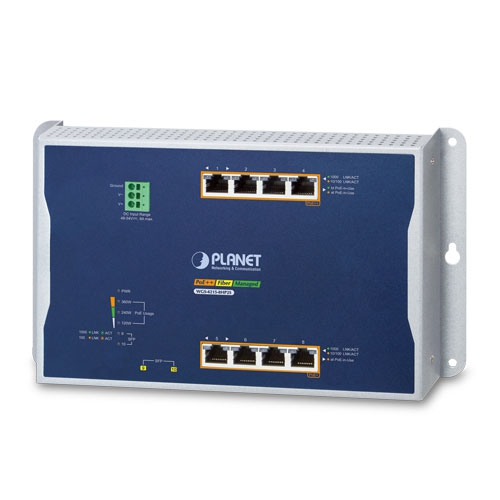

Planet WGS-4215-8P2S Flat-type L2+/L2 Ring Managed Gigabit PoE Switch – Price in Qatar
Planet WGS-4215-8P2S Flat-type L2+/L2 Ring Managed Gigabit PoE Switch – Price in Qatar
Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mount Managed Switch (-40~75 degrees C).
The WGS-4215-8P2S features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet standard, the WGS-4215-8P2S can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras and speed dome cameras. The WGS-4215-8P2S can easily help system integrators with the available network infrastructure to build wireless AP, IP camera and VoIP systems where power can be centrally-controlled.
Product Description
| Hardware Specifications | |
|---|---|
| Copper Ports | Eight 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| PoE Inject Port | Eight with 802.3at PoE+ injector function (Ports1 to 8) |
| SFP/mini-GBIC Slots | Two 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | Power LED: Power (Green) PoE Port (Port-1 to Port-8): PoE-in-Use (Orange) LNK/ACT (Green) 100/1000X SFP Ports (Port 9 to Port 10): 1000 LNK/ACT (Green) 100 LNK/ACT (Orange) |
| Connector | Removable 3-pin terminal block for power input Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) Pin 3 for earth ground DC power jack with 2.0mm central pole |
| Power Requirements* | 48~56V DC, 5A (max.) terminal block power input 48~56V DC, 5A (max.) DC jack power input |
| Power Consumption/ Dissipation | Max. 210 watts/716 BTU |
| Dimensions (W x D x H) | 178 x 25 x 134 mm |
| Weight | 640g |
| ESD Protection | Contact Discharge 6KV DC Air Discharge 8KV DC |
| Enclosure | IP30 metal |

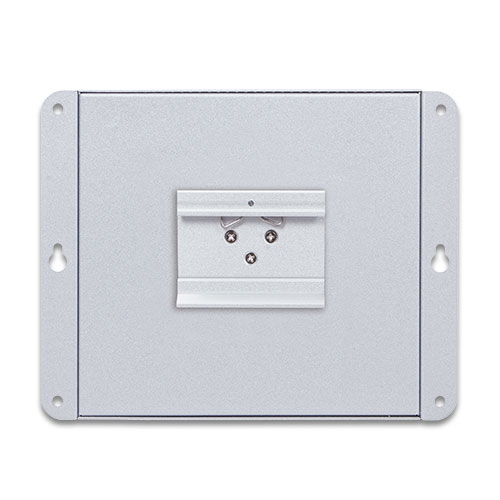

| Installation | Fixed wall mount, magnetic wall mount or DIN rail |
| Switch Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps/non-blocking |
| Switch Throughput@64 bytes | 14.8Mpps @64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 10KB |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/802.3at Power over Ethernet PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard Per port 48V~56V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard Per port 50V~56V DC (depending on the power supply), max. 36 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 200 watts (depending on power input) |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 7 |
| PoE Management Functions | |
| PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension |
| Active PoE Device Live Detection | Yes |
| PoE Power Recycling | Yes, daily or predefined schedule |
| PoE Schedule | 4 schedule profiles |
| PoE Extend Mode | Yes, max. up to 250 meters |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN |
| Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 1 groups with 2 SFP ports per trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU guard, BPDU filtering and BPDU forwarding |
| IGMP Snooping | IPv4 IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, up to 256 multicast groups |
| QoS | 8 mapping IDs to 8 level priority queues Port Number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control |
| Ring | Supports ERPS, and complies with ITU-T G.8032 |
| Security Functions | |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE |
| Port Security | IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
| MAC Security | IP-MAC port binding MAC filter Static MAC address |
| Enhanced Security | DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
| Management Functions | |
| Basic Management Interfaces | Web browser; Telnet; SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLS v1.2, SNMPv3 |
| Switch Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP Remote/Local Syslog System log LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB RFC 3621 Power Ethernet MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU G.8032 ERPS Ring |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Accessories | |
| Standard Accessories | Quick Installation Guide x 1 3-pin Terminal Block Connector x 1 Wall-mounted Kit x 1 DIN-rail Kit x 1 Magnet Kit x 1 RJ45 Dust Cap x 8 SFP Dust Cap x 2 |
| *Remark: | The two power input interfaces don’t support power redundant function. |
