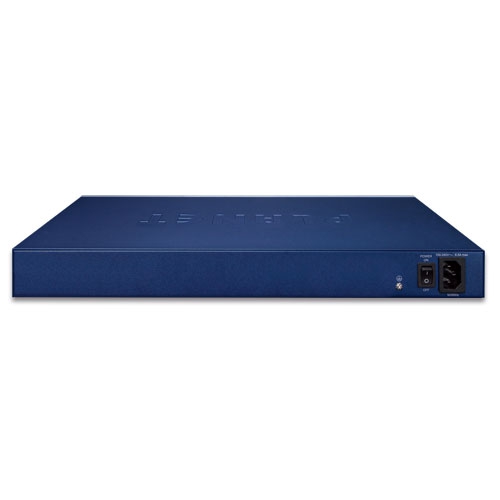

Planet UPOE-800G PoE Injector/Splitter/Extender – Price in Qatar
Planet UPOE-800G PoE Injector/Splitter/Extender – Price in Qatar
8-Port Gigabit 802.3bt PoE++ Managed Injector Hub (400 watts).
The UPOE-800G provides the easiest way to power your Ethernet devices such as IP camera on the ceiling and the wireless access point installed on the top of the building. With 8 10/100/1000BASE-T Gigabit Ethernet ports, the UPOE-800G supports full 54V DC power for any remote IEEE 802.3at/IEEE 802.3bt powered device (PD). To control the power system of your networking devices, the UPOE-800G can directly co-work with network devices such as PoE IP phone to build VoIP telephony network in the office. The UPOE-800G can be directly connected to any third-party IEEE 802.3bt and 802.3at PoE compliant devices installed within 100 meters. Furthermore, the UPOE-800G can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away.
Product Description
| Hardware | |
|---|---|
| Interface | Management Port：1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX “Data” Input Ports：8 x RJ45 “Data + Power” Output Ports：8 x RJ45 |
| Data Rate | 10/100/1000Mbps |
| Power Requirements | 100-240V AC, 50/60 Hz, 6.5A |
| Power Consumption | 450 watts/1535 BTU |
| Ventilation | Smart Fan x 3 |
| Dimensions (W x D x H) | 440 x 300 x 44.5mm |
| Weight | 4.1kg |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | System: SYS PWR x 1 (Green) PoE Failure x 1 (Red) Fan Failure x 2 (Red) Management port x 1: LNK/ACT (Green) Per PoE Port: 802.3bt/UPoE PoE-in-use x 1 (Green) 802.3at/af PoE-in-use x1 (Amber) PoE Power Usage LED x4 100W/200W/300W/400W:(Green) |
| Network Cable | 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) |
| Power over Ethernet | |
| PoE Standard | 802.3bt PoE++ PSE Backward compatible with IEEE 802.3at PoE PSE |
| PoE Power Supply Mode | 802.3bt End-span Mid-span |
| PoE Power Output | Per port 54V DC 802.3bt mode: maximum 95 watts End-span mode: maximum 36 watts Mid-span mode: maximum 36 watts |
| Power Pin Assignment | 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) |
| PoE PD Type | Standard Legacy Force |
| PoE Power Budget | 400 watts |
| Number of 95W 802.3bt Type-4 PDs | 4 |
| Number of 60W 802.3bt Type-3 PDs | 6 |
| Number of 802.3at PDs | 8 |
| PoE Management | Power limit by consumption and classification PoE function enable/disable Per port PoE function enable/disable Per port PoE power schedule Power feeding priority PD alive check PD classification detection Current per port usage and status Total power consumption |
| Security | |
| Firewall | SPI Firewall Protection |
| Filtering | MAC Filtering |
| Certificates | System CA Certificate for HTTPS |
| Management Functions | |
| Management Interface | HTTP/HTTPs Web user interface |
| Secure Management Interface | TLSv1.2, TLSv1.3 |
| Management Feature | IPv4 and IPv6 dual stack management Web interface for remote management PLANET DDNS and Easy DDNS Supports Network Time Protocol (NTP) System Maintenance Firmware upload via HTTP Configuration upload/download via HTTP Reboot button for system reboot Reset button for system reset to factory default PLANET Smart Discovery utility PLANET NMS system and CloudViewer for deployment management Scheduled System Power RebootingNetwork Diagnostic ICMPv6/ICMPv4 Remote Ping Trace Route |
| SNMP Management | SNMP v1, v2c and v3 for system status monitoring SNMP trap for alarm notification of events |
| Event Management | Local system event log Remote syslog |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus RFC 768: UDP RFC 791: IP RFC 2068 HTTP RFC 1157: SNMP v1 RFC 1902: SNMP v2c RFC 2273: SNMPv3 RFC 5424: Syslog |
| Environments | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
