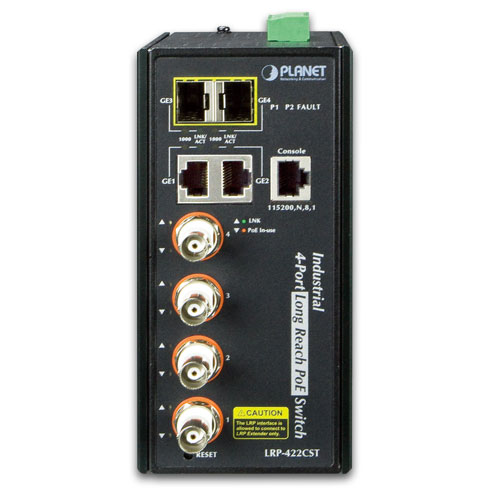

Planet LRP-422CST DIN-rail Managed Fast Ethernet PoE Switch – Price in Qatar

Industrial 4-port Coax + 2-port 10/100/1000T + 2-port 100/1000X SFP Long Reach PoE over Coaxial Managed Switch.

Under current CCTV system, if you need more channels and higher resolution in longer distance but the CCTV system cannot fulfill your demands, you can use the LRP-422CST via the existing coaxial cable by working with the LRP-101CE Long Reach PoE Extender to instantly establish PoE IP camera infrastructure and to easily upgrade IP camera infrastructure to up to 1024 channels in the future.

SKU: LRP-422CST Category: Planet Switches

Product Description

Hardware Specifications

Ethernet Interfaces

■ Copper
• 2 x 10/100/1000BASE-T RJ45
• Auto-negotiation/Auto-MDI/MDI-X

■ Fiber Optic
• 2 x 100/1000BASE-X SFP slot
• Supports 100/1000Mbps dual mode and DDM

■ Jumbo Frame
• 10Kbytes with GE1 to GE4

Long Reach PoE Interfaces

■ Connectivity
• 4 x BNC female connectors
• Long Reach PoE over coaxial PSE (Power Source Equipment)
– BNC center pole : DC+/Hi
– BNC shield : DC -/Lo

■ Power Output
• Per port 48~56V DC, 36 watts (max.)

■ Total Power Budget
• 150 watts (max.)

■ Cabling
• Coaxial cable: 75 ohm
• RG-6/U cable (Recommended)

■ Maximum Distance
• Max. 200m with PoE+ output (1,640ft.)
• Max. 400m with PoE output (2,624ft.)
• Max. 1200m without PoE output (3,937ft.)

■ Long Reach Ethernet Standard
• IEEE 1901

■ Modulation Type
• Wavelet-OFDM

■ Security
• 128-bit AES encryption

■ Frequency Band
• 2 ~ 28MHz

■ Performance

RG-6/U Distance	Data Rate*		LRP-101CE PoE Output@25 degrees C*
RG-6/U Distance	TX**	RX**	LRP-101CE PoE Output@25 degrees C*
200m	93.9Mbps	93.5Mbps	21.7W
400m	90.4Mpbs	90.3Mbps	19.04W
600m	82.1Mbps	80Mbps	13.5W
800m	69.9Mbps	69.4Mbps	10.35W
1000m	52.2Mbps	50.2Mbps	8.01W
1200m	31.7Mbps	37.8Mbps	—

* The actual data rate and PoE output vary on the quality of the copper wire and environmental factors.The performance result above is based on the testing via the RG-6/U coaxial cable.

** TX: The LRP-422CST to the LRP-101CE
RX: The LRP-101CE to the LRP-422CST

■ Multiple Nodes
• Up to 4 LRP extenders within 1km RG-6/U coaxial cable*

* The actual extender nodes vary on the quality of the copper wire and environmental factors.

■ LRP Compatibility
• LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender

Console

1 x RS232-to-RJ45 serial port (115200, 8, N, 1)

Switch Architecture

Store-and-Forward

Switch Fabric

8.8Gbps/non-blocking

Address Table

8K entries

Shared Data Buffer

4.1 megabits

Flow Control

IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex

Reset Button

< 5 sec: System reboot
> 5 sec: Factory default

EST Protection

6KV DC

ESD Protection

6KV DC

Enclosure

IP30 aluminum case

Installation

DIN-rail kit and wall-mount kit

Connector

Removable 6-pin terminal block for power input
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2

Alarm

One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V AC

LED

System:
Power 1 (Green)
Power 2 (Green)
Fault Alarm (Red)
Per LRP Port:
LNK/ACT (Green)
PoE In-use (Orange)
Per Gigabit Port:
LNK/ACT (Green)
1000(Orange)

Dimensions (W x D x H)

72 x 107 x 152 mm

Weight

1,150g

Power Requirements

48 to 56V DC

Power Consumption

9.5 watts/32.42 BTU (System on)
165 watts/563.0 BTU (Full loading)

Layer 2 Functions

Port Mirroring

TX/RX/both
Many-to-1 monitor

VLAN

802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP

Link Aggregation

IEEE 802.3ad LACP and static trunk
Supports 4 trunk groups with 4 ports for each group

Spanning Tree Protocol

STP/RSTP/MSTP

IGMP Snooping

IGMP (v2/v3) Snooping
IGMP Querier
Up to 256 multicast groups

MLD Snooping

MLD (v1/v2) Snooping, up to 256 multicast groups

Access Control List

IPv4/IPv6 IP-based ACL / MAC-based ACL

QoS

8 mapping IDs to 8 level priority queues
– Port number
– 802.1p priority
– 802.1Q VLAN tag
– DSCP field in IP packet
Traffic classification based, strict priority and WRR

Security

IEEE 802.1X port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
IP-MAC port binding
MAC filter
Static MAC address
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard

Management Functions

Basic Management Interfaces

Web browser/Telnet/SNMP v1, v2c
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Remote/Local Syslog
System log
LLDP protocol
SNTP

Secure Management Interfaces

SSH, SSL, SNMP v3

SNMP MIBs

RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB

Standards Conformance

Regulation Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 1901 Broadband Power Line
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2

Environment

Operating

Temperature: -20 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)

Storage

Temperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
