Planet LN1152 LoRa Node – Price in Qatar

Indoor IP30 LoRa Node Controller.

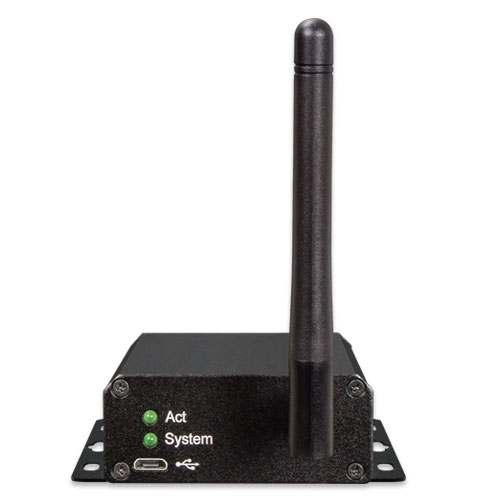

PLANET LN1152 is an indoor LoRa node controller used for data acquisition from multiple sensors. It contains different I/O interfaces including analog inputs, digital inputs, relay outputs and serial ports to simplify the deployment and replacement of LoRaWAN networks. Besides, the LN1152 can trigger multiple conditions and actions without a network. With its industrial design and IP30 metal case, the LN1152 is widely used in indoor applications like smart industries, building automation, etc.

SKU: LN1152 Category: Planet Switches

Product Description

Wireless Transmission
Technology	LoRaWAN
Antenna Connector	× 50 Ω SMA Connectors (Center Pin: SMA Female)
Frequency	LN1152-868: IN865, EU868, RU864 LN1152-915: US915, AU915, KR920, AS923
Tx Power	16dBm(868)/20dBm(915)
Sensitivity	-147dBm @300bps
Work Mode	OTAA/ABP Class C
Data Interfaces
Interface Type	3.5mm Terminal Block
IO	Digital Input Opto-isolated Digital Inputs, 3-24VDC (pulse counter support) Digital Output SPDT Relay Contact Rating: 3A@DC Max: 30 V or AC Max: 250 V
Serial Port	Ports RS232/RS485 Baud Rate 4800~115200bps (RS232)/1200~115200 bps(RS485) Protocol Transparent (RS232), Modbus RTU (RS485)
Others
Configuration Port	1 × Micro USB
LED Indicators	1 × System, 1 × ACT
Built-in	Watchdog, Timer
Physical Characteristics
Power Connector	3.5mm Terminal Block
Power Supply	5-24 VDC
Ingress Protection	IP30
Operating Temperature	-40°C to +70°C
Relative Humidity	0% to 95% (non-condensing)
Dimensions	79 × 60 × 24 mm
Installation	Desktop, Wall mounting
Standards Conformance
Regulatory Compliance	CE, FCC
