Industrial LoRaWAN Wireless Gateway with 5-Port 10/100/1000T.

PLANET LCG-300W LoRa gateway supports LoRa and LoRaWAN standard. Transceivers configured with LoRa devices like CO2 and water sensors are embedded into end-nodes, or sensor devices that capture and transmit data to gateways over distances through wireless network. The LCG-300W can send information via Ethernet to the Network Server, which is responsible for network management functions that distribute information to each application accordingly.

SKU: LCG-300W Category: Planet Switches

Product Description

Hardware Specifications

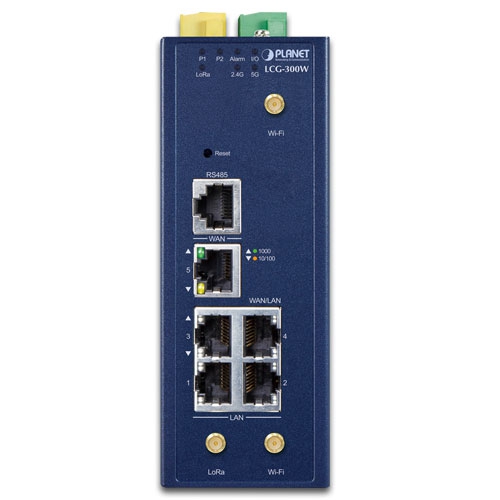

Copper Ports	5 10/100/1000BASE-T RJ45 Ethernet ports including 3 LAN ports (Ports 1 to 3) 1 LAN/WAN port (Port 4) 1 WAN port (Port 5)
Serial Interface	RJ45 serial port
LoRa Antenna	2 dBi external antennas with SMA connectors for LoRa

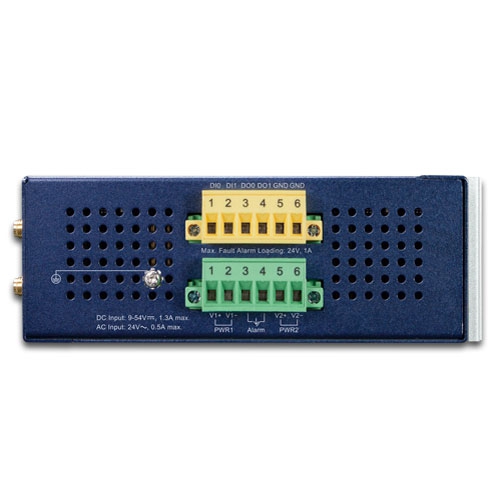

DI & DO Interfaces	2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24V DC, 100mA max.
Connector	Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
Enclosure	IP30 metal case
Installation	DIN-rail, desktop, wall-mounting
LED Indicators	System: P1 (Green) P2 (Green) Alarm (Red) I/O (Red) LoRa (Green) Ethernet Interfaces (Ports 1-4 and WAN Port): 1000 LNK/ACT (Green) 10/100 LNK/ACT (Amber) Wi-Fi: 2.4G(Green) 5G(Green)
Dimensions (W x D x H)	50 x 135 x 135 mm
Weight	0.9 kg
Power Requirements – DC	9~54V DC, 1.3A Max.
Power Consumption	12.5 watts/ 42.7 BTU
LoRaWAN
Frequency Band	LCG-300W-EU:863~870MHz (IN865/EU868/RU864) LCG-300W-US: 902~928MHz (US915/AU915/KR920/AS923)
Receiving Sensitivity	-142.5dBm
Output Power	27dBm Max.
Wireless
Standard	IEEE 802.11a/n/ac/ax 5GHz IEEE 802.11g/b/n/ax 2.4GHz
Band Mode	2.4G & 5G concurrent mode
Frequency Range	2.4GHz America FCC: 2.412~2.462GHz Europe ETSI: 2.412GHz~2.472GHz 5GHz 5.15GHz ~5.875GHz
Operating Channels	2.4GHz America FCC: 1~11 Europe ETSI: 1~13 5GHz America FCC: Non-DFS: 36, 40, 44, 48, 149,153,157,161,165 DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 Europe ETSI: Non-DFS: 36, 40, 44, 48 DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 *5GHz channel list may vary in different countries according to their regulations.
Channel Width	20MHz, 40MHz, 80MHz
Data Transmission Rates	Transmit: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz Receive: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz *The estimated transmission distance is based on the theory. The actual distance may vary in different environments.
Transmission Power	11g/n HT20: 20dBm +/- 1.5dbm @MCS7 HT40: 17dBm@MCS7 11a/n HT20: 19.5dBm+/- 1.5dbm @MCS7 HT40: 17dBm@MCS7 11ac HT20: 20+/-1.5dBm @MCS8 HT40: 4.5+/-1.5dBm @MCS9 HT80: 4.5+/-1.5dBm @MCS9 11ax HT20: 20+/-1.5dBm @MCS9 HT40: 17 +/- 1.5dBm @MCS9 HT80: 14.5 +/- 1.5dBm @MCS11
Encryption Security	WEP (64/128-bit) WPA / WPA2 (TKIP/AES) WPA-PSK / WPA2-PSK (TKIP/AES) / WPA3-PSK (TKIP/AES) 802.1x Authenticator
Wireless Advanced	Wi-Fi Multimedia (WMM) Auto channel selection Wireless output power management MAC address filtering
Max. SSID	8 (4 per radio)
Max. Wireless Client	128 (64 per radio) (100 is suggested, depending on usage)
Advanced Functions
VPN	IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN)
VPN Tunnels	Max. 60
VPN Throughput	Max. 60Mbps
Encryption Methods	DES, 3DES, AES or AES-128/192/256 encrypting
Authentication Methods	MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Management
Basic Management Interfaces	Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported
Secure Management Interfaces	SSHv2, TLSv1.2, SNMP v3
System Log	System Event Log
Others	Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics
Standards Conformance
Regulatory Compliance	CE, FCC
Environment
Operating	Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -40 ~ 85 degrees C Relative humidity: 5 ~ 90% (non-condensing)
