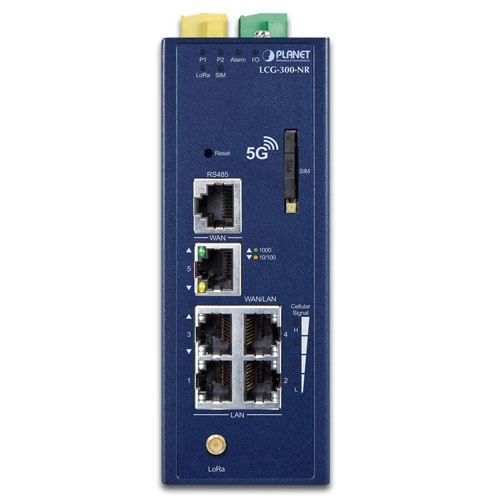

Planet LCG-300-NR 5G NR Cellular Gateway – Price in Qatar
Planet LCG-300-NR 5G NR Cellular Gateway – Price in Qatar
Industrial LoRaWAN + 5G NR Cellular Gateway with 5-Port 10/100/1000T.
PLANET LCG-300-NR adopts 5G NR cellular technology and thus breaks the 100m limitation of RJ45 transmission. To avoid data loss affected by an unexpected breakdown connection on the part of ISP, the LCG-300-NR provides failover functions and advanced features like VLAN, VPN, Modbus, and network management to cover more applications.
Product Description
| Hardware Specifications | |
|---|---|
| Ethernet | 5 10/100/1000BASE-T RJ45 Ethernet ports including 3 LAN ports (Ports 1 to 3) 1 LAN/WAN port (Port 4) 1 WAN port (Port 5) |
| Serial Interface | RJ45 type RS485 for Modbus TCP |
| Cellular Antenna | 5 dBi external antennas with SMA connectors for 5G-NR |
| SIM Interface | 1 SIM card slot with mini SIM card tray |
| LoRa Antenna | 2 dBi external antennas with SMA connectors for LoRa |
| DI & DO Interfaces | 2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input Load to 24V DC, 10mA max. 2 Digital Output (DO): |
| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Enclosure | IP30 metal case |
| Installation | DIN-rail, desktop, wall-mounting |
| LED Indicators | System: P1, P2, LoRa, SIM (Green) Alarm, I/O (Red) Interfaces (Ports 1-4 and WAN Port): cellular signal |
| Dimensions (W x D x H) | 50 x 135 x 135 mm |
| Weight | 924g |
| Power Requirements – DC | 9~54V DC, 1.5A Max. |
| Power Consumption | Max. 3.9 watts/13.2 BTU (No Loading) Max. 11.6 watts/39.5 BTU (Full loading) |
| LoRaWAN | |
| Frequency Band | LCG-300-NR-EU:863~870MHz (IN865/EU868/RU864) LCG-300-NR-US: 902~928MHz (US915/AU915/KR920/AS923) |
| Receiving Sensitivity | -142.5dBm |
| Output Power | 27dBm Max. |
| Multi Band Supports | |
| 5G SUB6 BANDS | NSA： n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n28/n29/n30/n38/n40/n41/ n48/ n66/n70/n71/n75/n76/n77/n78/n79 SA： n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n28/n29/n30/n38/n40/n41/ n48/n66/n70/n71/n75/n76/n77/n78/n79 |
| LTE BANDS | FDD：B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/ B29/B30/B32/B66/B71 TDD：B34/B38/B39/B40/B41/B42/B43/B48 LAA：B46 |
| UMTS BANDS | FDD ：B1/B2/B8/B4/B5/B19 MAX DL SPEED: DL3.4Gbps; UL 550 Mbps GNSS: GPS/ GLONASS/ BDS/ Galileo/ QZSS TDD ：MAX DL SPEED DL 2.4 Gbps; UL 900 Mbps |
| WCDMA | B1/B2/B3/B4/B5/B8 |
| GNSS | GPS L1+L5 dual bands/GLONASS/BeiDou/Galileo/QZSS |
| Data Transmission Throughput | 2.4Gbps (DL)/500Mbps (UL) for NR 1Gbps (DL)/200Mbps (UL) for LTE 42Mbps (DL)/5.76Mbps (UL) for HSPA+ |
| Security Service | |
| Firewall Security | Cybersecurity SSL (HTTPS) Inspection Stateful Packet Inspection (SPI) Blocks DoS/DDoS attack |
| NAT | Port forwarding DMZ Host UPnP |
| Content Filtering | MAC filtering IP filtering Web filtering |
| Bandwidth Management | Outbound load balancing Failover for dual-WAN QoS (Quality of Service) |
| Networking | |
| Operation Mode | Routing mode |
| Routing Protocol | Static Route, Dynamic Route (RIP), OSPF |
| VLAN | 802.1q Tag-based, Port-based, Multi-VLAN |
| Multicast | IGMP Proxy |
| NAT Throughput | Max. 900Mbps |
| Outbound Load Balancing | Supported algorithms: Weight |
| Protocol | IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3, |
| Key Features | HA (High Availability) Captive Portal RADIUS Server/Client AP Control |
| Advanced Functions | |
| VPN Function | IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN) |
| VPN Tunnels | Max. 60 |
| VPN Throughput | Max. 108Mbps |
| Encryption Methods | DES, 3DES, AES or AES-128/192/256 encrypting |
| Authentication Methods | MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
| Management | |
| Basic Management Interfaces | Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
| System Log | System Event Log |
| Others | Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics |
| Standards Conformance | |
| Regulatory Compliance | CE, FCC |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative humidity: 5 ~ 90% (non-condensing) |
