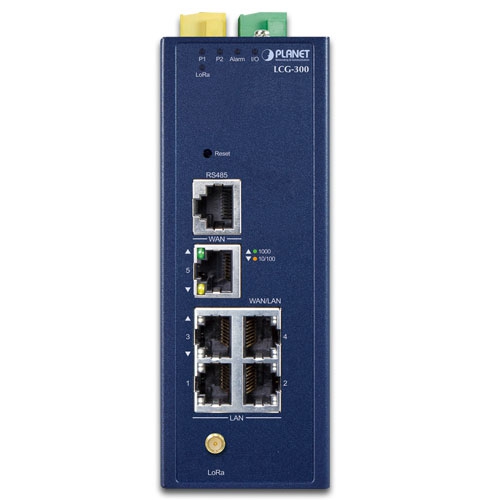

Planet LCG-300 LoRaWAN Gateway – Price in Qatar

Industrial LoRaWAN Gateway with 5-Port 10/100/1000T.

PLANET LCG-300 LoRa gateway supports LoRa and LoRaWAN standard. Transceivers configured with LoRa devices like CO2 and water sensors are embedded into end-nodes, or sensor devices that capture and transmit data to gateways over distances through wireless network. The LCG-300 can send information via Ethernet to the Network Server, which is responsible for network management functions that distribute information to each application accordingly.

SKU: LCG-300 Category: Planet Switches

Product Description

Hardware Specifications
Copper Ports	5 10/100/1000BASE-T RJ45 Ethernet ports including 3 LAN ports (Ports 1 to 3) 1 LAN/WAN port (Port 4) 1 WAN port (Port 5)
Serial Interface	RJ45 serial port
LoRa Antenna	2 dBi external antennas with SMA connectors for LoRa
DI & DO Interfaces	2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input Load to 24V DC, 10mA max.2 Digital Output (DO): Open collector to 24V DC, 100mA max.
Connector	Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
Enclosure	IP30 metal case
Installation	DIN-rail, desktop, wall-mounting
LED Indicators	System: P1 (Green) P2 (Green) Alarm (Red) I/O (Red) LoRa (Green) Ethernet Interfaces (Ports 1-4 and WAN Port): 1000 LNK/ACT (Green) 10/100 LNK/ACT (Amber)
Dimensions (W x D x H)	50 x 135 x 135 mm
Weight	0.9 kg
Power Requirements – DC	9~54V DC, 1.3A Max.
Power Consumption	8 watts/ 27.3 BTU
LoRaWAN
Frequency Band	LCG-300-EU:863~870MHz (IN865/EU868/RU864) LCG-300-US: 902~928MHz (US915/AU915/KR920/AS923)
Receiving Sensitivity	-142.5dBm
Output Power	27dBm Max.
Advanced Functions
VPN	IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN)
VPN Tunnels	Max. 60
VPN Throughput	Max. 60Mbps
Encryption Methods	DES, 3DES, AES or AES-128/192/256 encrypting
Authentication Methods	MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Management
Basic Management Interfaces	Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported
Secure Management Interfaces	SSHv2, TLSv1.2, SNMP v3
System Log	System Event Log
Others	Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics
Standards Conformance
Regulatory Compliance	CE, FCC
Environment
Operating	Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -40 ~ 85 degrees C Relative humidity: 5 ~ 90% (non-condensing)
