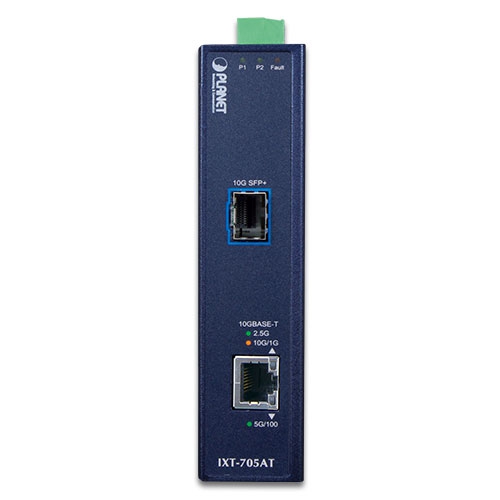

Planet IXT-705AT DIN-rail 10G Ethernet Converter – Price in Qatar

Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter.

PLANET IXT-705AT Industrial Gigabit Media Converter offers full port 10 Gigabit speed, and has a strong, stable and long-distance connection and flexible industrial networking deployment. It provides very high reliability and security features to make sure the continuous operation in harsh environments such as transportations, factories, outdoors and places where extremely low or high temperatures can be experienced.

SKU: IXT-705AT Category: Planet Switches

Product Description

Hardware Specifications
Copper Interface	1 x 10000/5000/2500/1000/100 BASE-T RJ45 Auto-MDI/MDI-X, auto-negotiation
Fiber Optic Interface	1 10GBASE-SR/LR SFP+ interface

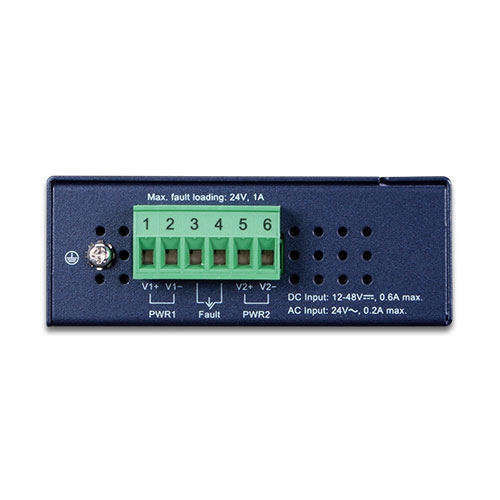

Connector	Removable 6-pin terminal block Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Alarm	Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V
LED	System: Fault Alert (Red), PWR (Green) 10000/5000/2500/1000/100 BASE-T RJ45 Interfaces: 1/10G LNK (Orange) 5000/2500/100M LNK (Green)
ESD Protection	6KV DC
Enclosure	IP30 type metal case
Installation	DIN-rail kit and wall-mount ear
Dimensions (W x D x H)	32 x 87 x 135mm
Weight	385g
Power Requirements	DC 12~48V or 24V AC
Converter Specifications
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Fabric	20Gbps
Address Table	9K entries, automatic source address learning and aging
Jumbo Frame	16K
Network Cables	10G/5G/2.5G/1G/100M BASE-T: 10G – Cat 6A/7 5G – Cat 6/6A/7 1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX : 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 60km
Standards Conformance
Standards Compliance	IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full-duplex flow control
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing)
