Planet ISW-800T-M12 Fast Ethernet Switch – Price in Qatar
Planet ISW-800T-M12 Fast Ethernet Switch – Price in Qatar

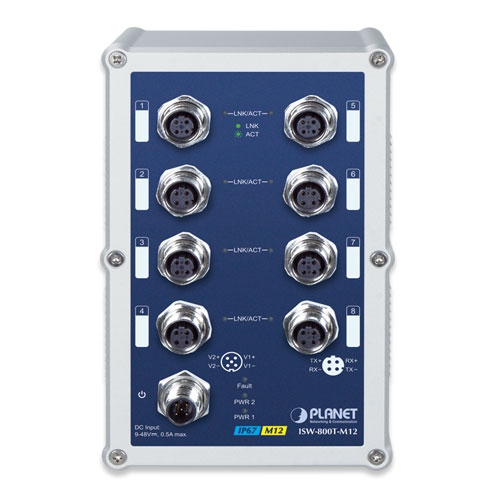

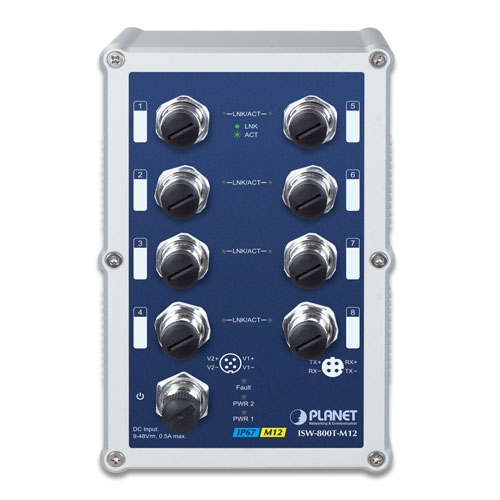

Industrial IP67 Rated 8-Port 10/100Mbps M12 Fast Ethernet Switch with Wide Operating Temperature.
The ISW-800T-M12 is equipped with eight 10/100Base-TX auto-negotiation ports and M12 connector interfaces, and offers 1.6Gbps non-blocking switch fabric and the 2K MAC Address table. It can perform wire-speed packets transfer without risk of packet loss. The M12 connector provides tightly, strong connection and guarantees stable Ethernet operation performance under high vibration and shock environment such as public Transmission System and Railway Transmission.
Product Description
| Hardware Specifications | |
|---|---|

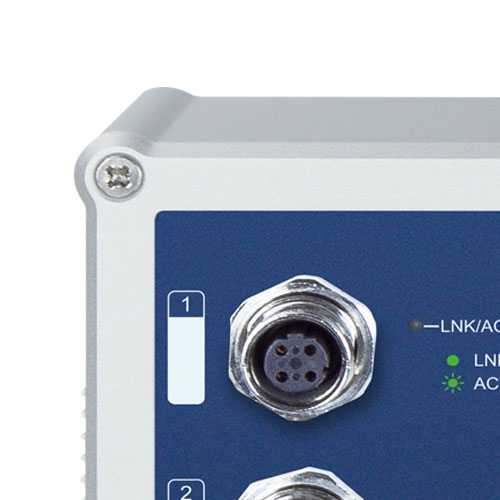

| 10/100Base-TX Ports | 8 x M12, 4-pin D-coded female connector |
| Power Connector | 1 x M12, 5-pin A-Coded male connector |
| Enclosure | IP67 aluminum |
| Dimensions (W x D x H) | 163 x 103 x 53 mm |
| Weight | 976g |
| Power Requirements | 12~48V DC, redundant power with polarity reverse protection function |
| Power Consumption / Dissipation | 4 watts / 13 BTU |
| Installation | DIN rail kit and wall mount ear |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| LED Indicators | Power LED: • Power 1 / Power 2 / FAULT (Green) 10/100Base-TX Port (Port-1 to Port-8): • LNK/ACT (Green) |
| Network Cables | 10Base-T: 2-Pair UTP Cat.3,4,5 up to 100m (328ft) 100Base-TX: 2-Pair UTP Cat.5, 5e, 6 up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, max.) |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.6Gbps |
| Throughput (packet per second) | 1.19Mpps@64Bytes |
| Maximum Transmit Unit | 1536 bytes |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x full-duplex flow control |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
| Standard Accessories | |
| Packet Contents | 1 x M12 4-pin D-coded male connector to RJ-45 Ethernet cable, 1.2m 1 x M12 5-pin A-coded female connector power cable, 1.2m 1 x wall-mount kit 1 x DIN-rail kit (attached to M12 switch as default) 1 x user’s manual |
