Planet ISW-621 / ISW-621S15 Fast Ethernet Switch - Price in Qatar

Planet ISW-621 / ISW-621S15 Fast Ethernet Switch – Price in Qatar

4-Port 10/100Base-TX + 2-Port 100Base-FX Industrial Fast Ethernet Switch (-10~60 degrees C operating temperature).

The ISW-621/ISW-621S15 is equipped with 4 10/100Mbps ports that offer auto MDI / MDIX feature, 2 100Base-FX optic-fiber SC interfaces, 1.2Gps non-blocking switch fabric, and the 2K MAC address table so that they can perform wire-speed packets transfer without risk of packet loss. The ISW-621/ISW-621S15 with the slim type IP 30 metal shape is ideal for most Heavy Industrial demanding environments.

SKU: ISW-621 / ISW-621S15 Category: Planet Switches

Product Description

Hardware Specifications
Copper	Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI/MDI-X Cable 10Base-T : 2-pair UTP Cat. 3, 4, 5cable (100meters, max.) 100Base-TX : 2-pair UTP Cat. 5cable (100meters, max.)
Optical	Port 2 x 100Base-FX Cable ISW-621: 50/125μm fiber ISW-621S15: 9/125μm fiber Mode ISW-621: Multi-mode ISW-621S15: Single-mode Distance ISW-621: 2km ISW-621S15: 15km Frequency ISW-621: 1310nm ISW-621S15: 1310nm Launch Power ISW-621: Max. -14dBm, Min. -19dBm ISW-621S15: Max. -7dBm, Min. -20dBm Receive Sensitivity ISW-621: -34.5dBm ISW-621S15: -28dBm Max. Input Power ISW-621: -14dBm ISW-621S15: -8dBm
Dimensions (W x D x H)	135 x 97 x 32 mm
Weight	442g

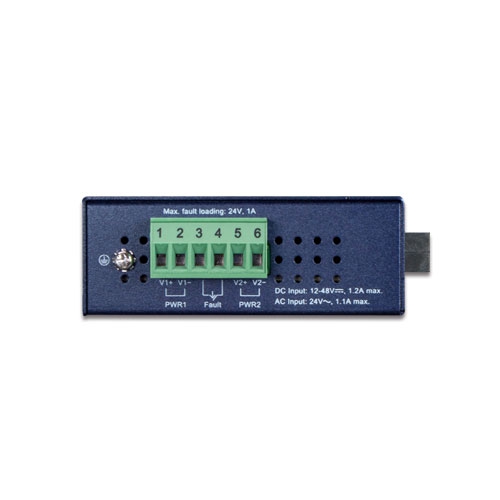

Power Requirements	12~48 VDC, Redundant power with polarity reverse protection function
Power Consumption / Dissipation	Max. 11.6 watts / 40BTU
Installation	DIN rail kit / wall mount ear
Alarm	Provides one relay output for power fail Alarm relay current carry ability: 1A @ DC 24V
Switch Specification
Switch Processing Scheme	Store-and-Forward
Address Table	2K entries
Buffer	1Mbit
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Switch Fabric	1.2Gbps
Throughput (Packet Per Second)	0.89Mpps @ 64Bytes
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x full-duplex flow control
Temperature	Operating: -10~60 degrees C Storage: -40~85 degrees C
Humidity Operating	Operating: 5~90%, Storage: 5~90% (non-condensing)
Regulation Compliance	FCC Part 15 Class A, CE
Safety	UL, cUL
Stability Testing	IEC60068-2-32(Free fall), IEC60068-2-27(Shock), IEC60068-2-6(Vibration)
