Planet ISW-514PTF DIN-rail Unmanaged Fast Ethernet PoE Switch – Price in Qatar
Planet ISW-514PTF DIN-rail Unmanaged Fast Ethernet PoE Switch – Price in Qatar
Industrial 4-port 10/100TX 802.3at PoE+ plus 1-Port 100FX Ethernet Switch.
Suitable for buildings where security is strictly enforced, the ISW-514PTF, with four Fast Ethernet 802.3at PoE+ in-line power interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 4 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the ISW-514PTF makes the installation of IP cameras or wireless APs easier and more efficient.
Product Description
| Hardware Specifications | |
|---|---|
| Copper Ports | Four 10/100BASE-TX RJ45 auto-MDI/MDI-X ports (Ports 1 to 4) |
| PoE Injector Ports | Four ports with 802.3af/at PoE+ injector function (Ports 1 to 4) |
| SFP Port | One port 100BASE-FX SFP port |

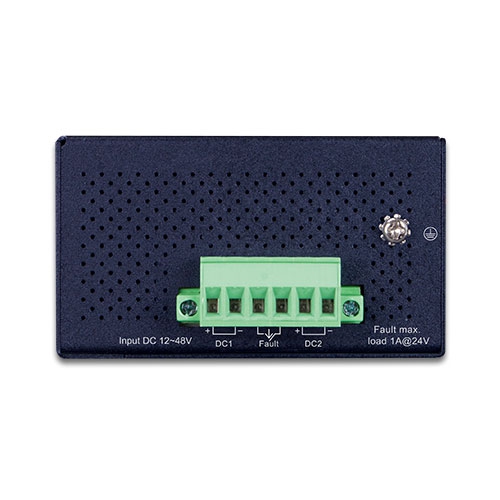

| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1 Pin 3/4 for power fault alarm Pin 5/6 for Power 2 |
| DIP Switch (Ports 1 to 4) | Standard mode: 30-watt PoE transmission distance of 100m at speed of 10/100Mbps VLAN mode: “Port-based VLAN Protection” where ports can be isolated from each other via one DIP switch. Only Port-5 can visit other ports. Extend mode: 25-watt PoE transmission distance of 250m at speed of 10Mbps |
| Power Requirements | 12~54V DC, 7A (max.) |
| Power Consumption | Max. 7 watts/23.8BTU@54V DC input (System) Max. 133 watts/453BTU@54V DC input (Ethernet + PoE Full Loading) |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC |
| Dimensions (W x D x H) | 50 x 87 x 135 mm |
| Weight | 613g |
| Enclosure | IP40 metal case |
| Installation | DIN-rail/ wall-mount |
| ESD Protection | 5KV |
| LED Indicators | 3 x LED for System and Power: Green: DC Power 1 Green: DC Power 2 Red: Power Fault Alarm 2 x LED for PoE +Copper Port (Ports 1 to 4): Green: LNK/ACT (10/100Mbps) Amber: PoE-in-Use 1 x LED for 100BASE-FX Port (Port 5): Green: LNK/ACT (100Mbps) 4 x LED for PoE Usage(W) (Low to high): Amber: 30W, 60W, 90W and 120W |
| Switch Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 1Gbps/non-blocking |
| Throughput (packet per second) | 0.74Mpps @64 bytes |
| Address Table | 1K entries |
| Jumbo Frame | 1536 bytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Output | Per port 54V DC, Max. 36 watts |
| PoE Power Budget (max.) | 120W maximum @54V DC 90W maximum@24V DC 60W maximum@12V DC |
| Max. Number of Class 2 PDs | 4 |
| Max. Number of Class 3 PDs | 4 |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
