Planet ISW-501T Fast Ethernet Switch – Price in Qatar

5-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 degrees C operating temperature).

The ISW-501T’s IP30-rated metal case is particularly designed for the most heavy industrial demanding environments, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data.

SKU: ISW-501T Category: Planet Switches

Product Description

Hardware Specifications

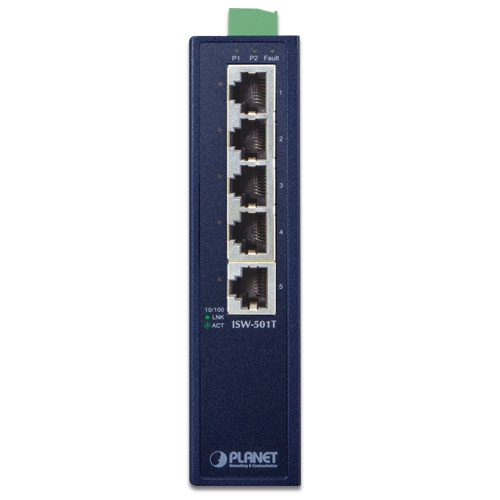

10/100BASE-TX Auto MDI/MDIX Ports	5
LED Indicators	3 x LED for System and Power: ■ Green: DC Power 1 ■ Green: DC Power 2 ■ Green: Power Fault 1 x LED for each Copper Port ■ Green: 10/100 LNK/ACT
Enclosure	IP30-rated metal case
Dimensions (W x D x H)	135 x 87 x 32 mm
Weight	400g
ESD Protection	6KV DC
EFT Protection	6KV DC
Power Requirements	12~48V DC, redundant power with polarity reverse protection function, 24V AC power support
Power Consumption/Dissipation	1.6 watts/5.4BTU
Installation	DIN rail kit and wall-mount ear
Alarm	Provides one relay output for power failure Alarm relay current carry ability: 3A @ DC 30V

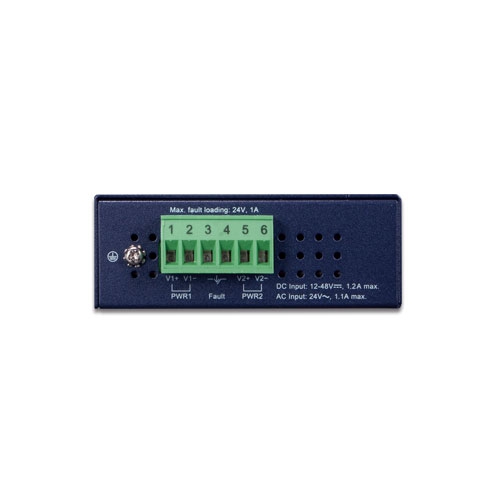

Connector	Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table	1K
Buffer Memory	Embedded 448K bits packet buffer
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Switch Fabric	1Gbps
Throughput (packet per second)	0.74Mpps
Network Cables	10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5% to 95%, Storage: 5% to 95% (non-condensing)
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock-proof) IEC60068-2-6 (vibration-proof)
