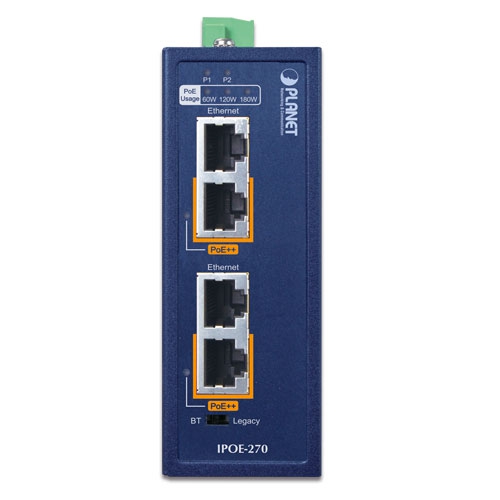

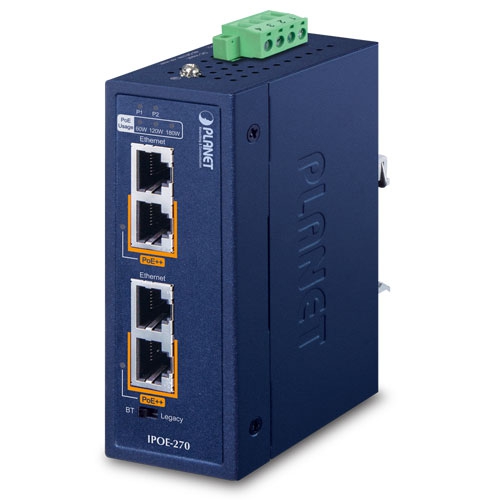

Planet IPOE-270 / IPOE-270-12V PoE Injector/Splitter/Extender – Price in Qatar

Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub.

Having the capability of IEEE 802.3bt Power over Ethernet standard, the IPOE-270 series can directly connect and inject power via RJ45 Ethernet cable to any IEEE 802.3bt end-nodes like PoE PTZ speed dome cameras, thin clients, all-in-one touch PCs, point of sale (POS), information kiosks, remote digital signage displays and PoE lightings.

SKU: IPOE-270 / IPOE-270-12V Category: Planet Switches

Product Description

Hardware Specifications
Copper Ports	2-pair 10/100/1G/2.5G/5GBASE-T RJ45 : Data input port 1 and PoE output port 1 Data input port 2 and PoE output port 2
Connector	Removable 4-pin terminal block Pins 1 and 2 for Power 1; Pins 3 and 4 for Power 2
LED Indicator	System: Power 1 (Green) Power 2 (Green) PoE Usage: 60W/120W/180W (Amber) 802.3bt PoE++ Port: PoE-in-use x 1(Green: bt, Amber: at)
Network Cable	Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6 1000BASE-T: 4-pair UTP Cat. 5e, 6 2.5G/5GBASE-T: 4-pair UTP Cat.6, 6A,7
Data Rate	10/100/1000/2500/5000Mbps
Power Requirements	IPOE-270：48~54V DC, redundant power with reverse polarity protection IPOE-270-12V：12~54V DC, redundant power with reverse polarity protection
Power Consumption (Ethernet Full Loading)	IPOE-270 System ON without loading 48V DC: 1.4 watts/4.7BTU 52V DC: 1.5 watts/5.1BTU 54V DC: 1.6 watts/5.4BTU Full loading with PoE 48V DC (120W PoE budget): 128 watts/436BTU 52V DC (180W PoE budget): 177 watts/603BTU 54V DC (180W PoE budget): 187 watts/638BTU IPOE-270-12V System ON without loading 12V DC: 1.8 watts/6.1BTU 24V DC: 2.4 watts/8.1BTU 48V DC: 2.4 watts/8.1BTU 52V DC: 2.6 watts/8.8BTU 54V DC: 2.1 watts/7.1BTU Full loading with PoE 12V DC (60W PoE budget): 60 watts/204BTU 24V DC (120W PoE budget): 124 watts/423BTU 48V DC (120W PoE budget): 120 watts/409BTU 52V DC (180W PoE budget): 188 watts/641BTU 54V DC (180W PoE budget): 188 watts/641BTU
Dimensions	41 x 70 x 115 mm (W x D x H)
Weight	IPOE-270：284g IPOE-270-12V：387g
Enclosure	IP30 metal case
Installation	DIN-rail kit and wall-mount kit
ESD Protection	6KV
Surge Protection	6KV
Power over Ethernet
PoE Standard	IEEE 802.3bt PoE++, 4-pair PSE Compatible with IEEE 802.3at PoE+ PSE
PoE Power Supply Type	End-span + Mid-span
Power Pin Assignment	End-span: 1/2 (-), 3/6 (+); Mid-span: 4/5 (+), 7/8 (-)
Per PoE Port Output Power	95 watts
PoE Power Budget (max.)	IPOE-270： 120W@48V DC input 180W@52V/54V DC input IPOE-270-12V： 60W@12V DC input 120W@24V/48V DC input 180W@52V/54V DC input
PoE DIP Switch	DIP switch for the following operation modes BT mode (Default) Legacy and Force modes
Number of devices that can be powered	２
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing)
