Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub.

Having the capability of IEEE 802.3at Power over Ethernet standard, the IPOE-260 series can directly connect and inject power via RJ45 Ethernet cable to any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) IP cameras, color touch-screen voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other network devices.

SKU: IPOE-260 Series Category: Planet Switches

Product Description

IPOE-260 Series

Model

IPOE-260

IPOE-260-12V

Hardware Specifications

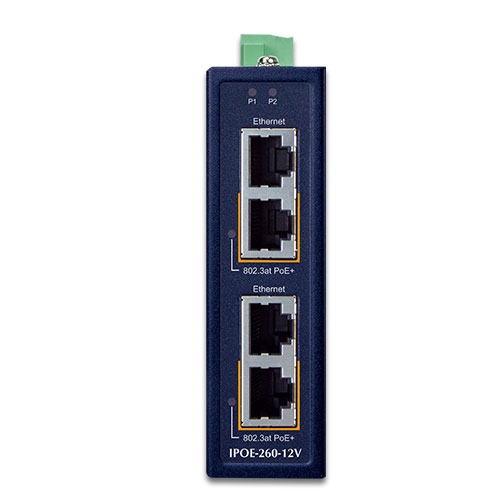

Copper Ports

2 pair 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports:

Data input port 1 and PoE output port 1
Data input port 2 and PoE output port 2

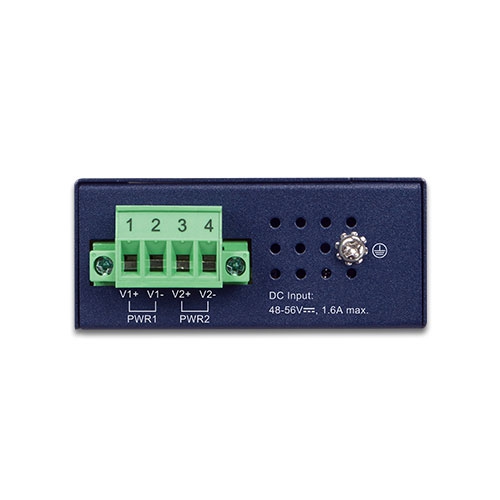

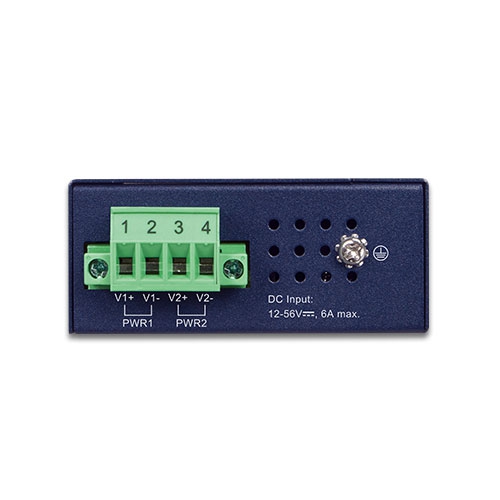

Connector

Removable 4-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for Power 2

LED Indicator

System:
Power 1 (Green),
Power 2 (Green),
PoE Port:
802.3at PoE+ x 1 (Green + Orange)

Network Cable

Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6

Data Rate

10/100/1000Mbps

Power Requirements

IPOE-260	IPOE-260-12V
48~56V DC, redundant power with reverse polarity protection function.	12~56V DC, redundant power with reverse polarity protection function.

Power Consumption (Ethernet Full Loading)

IPOE-260	IPOE-260-12V
Max. 2 watts/6.8 BTU (Power on without any connection) Max. 80 watts/272.9 BTU (Full loading with PoE function)	Max. 4 watts/13.6 BTU (Power on without any connection) Max. 80 watts/272.9 BTU (Full loading with PoE function)

Dimensions (W x D x H)

30 x 70 x 105 mm

Weight

280g

Enclosure

IP30 metal case

Installation

DIN-rail, wall-mount or side wall-mount design

ESD Protection

6KV

EFT Protection

6KV
