Planet IPOE-165 PoE Injector/Splitter/Extender – Price in Qatar

Industrial IP67 1-Port 802.3at PoE+ Injector.

Having the capability of IEEE 802.3at Power over Ethernet standard, the IPOE-165 can directly connect and inject power via RJ45 Ethernet cable to any IEEE 802.3at end-nodes like PTZ network cameras, PTZ speed dome cameras, multi-channel wireless LAN access points and other network devices.

SKU: IPOE-165 Category: Planet Switches

Product Description

Hardware Specifications

Interface

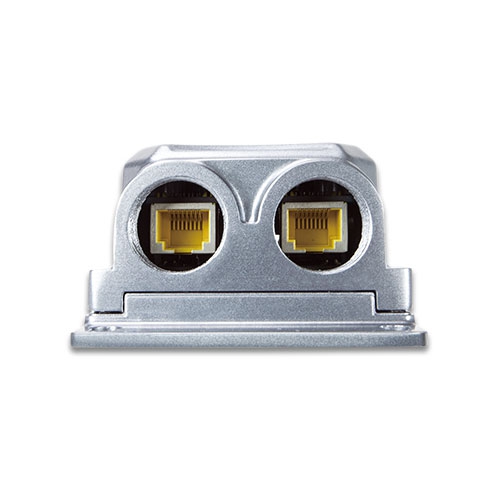

Input Port

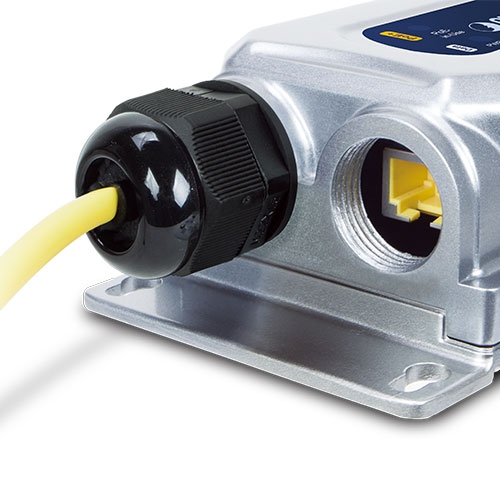

1 x 10/100/1000BASE-T “Data” in RJ45 port

Output Port
1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE+
“Data + DC” out RJ45 port

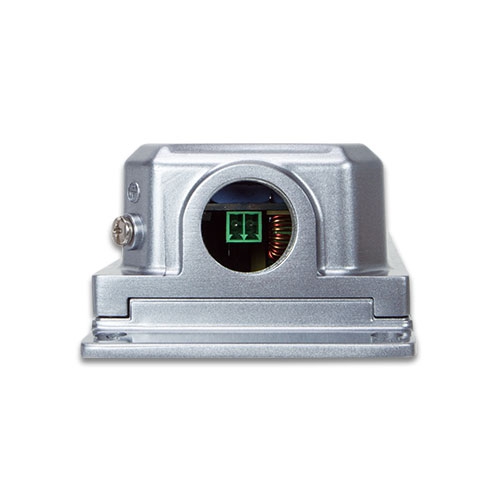

Input Power Terminal Block
1 x 2-pin terminal block
– Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)

Data Rate

10/100/1000Mbps

LED Indicator

PWR (Green)
PoE-in-use x 1 (Green)

Input Voltage

24~56V DC

Power Consumption

Voltage	System on	Full Load (Max.)
DC 24V	0.72W	43.4W
DC 36V	0.72W	41.04W
DC 54V	1.08W	40.5W

ESD Protection

Air 8KV DC
Contact 6KV DC

Surge Protection

6KV

Enclosure

IP67-rated and IK10 aluminum metal case

Installation

Wall-mount ear

Dimensions (W x D x H)

150 x 43.8 x 72.94 mm
169.85 x 43.8 x 72.94 mm, with cable gland

Weight

339g

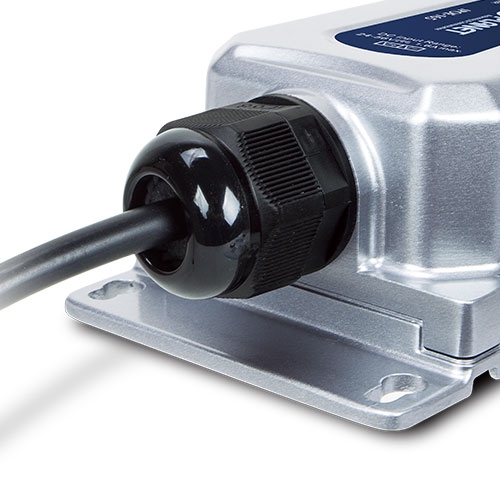

373g (with three waterproof cable glands)

MTBF

>100,000 hours

Network Cable

10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5,5e cable (≤100m)
1000BASE-T: UTP category 5e,6 cable(≤100m)

Power over Ethernet

PoE Standard

IEEE 802.3at Power over Ethernet Plus / End-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet

PoE Power Output

54V DC, max. 30 watts

PoE Power Supply Type

End-span

Power Pin Assignment

1/2 (+), 3/6 (-)

Standards Conformance

Regulatory Compliance

FCC Part 15 Class A
CE

Stability Testing

IEC 60068-2-32 (Free fall)
IEC 60068-2-27 (Shock)
IEC 60068-2-6 (Vibration)

Standards Conformances

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus

Environment

Operating Temperature

-40 ~ 75 degrees C

Storage Temperature

-40 ~ 85 degrees C

Humidity

5 ~ 95% (non-condensing)
