Planet IPOE-162 PoE Injector/Splitter/Extender – Price in Qatar

Industrial IEEE 802.3at Gigabit Power over Ethernet Plus Injector (Mid-span).

Having the capability of IEEE 802.3at Power over Ethernet standard, the IPOE-162 can directly connect and inject power via RJ45 Ethernet cable to any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome cameras, color touch-screen voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other network devices.

SKU: IPOE-162 Category: Planet Switches

Product Description

Hardware Specifications
Hardware Version	3

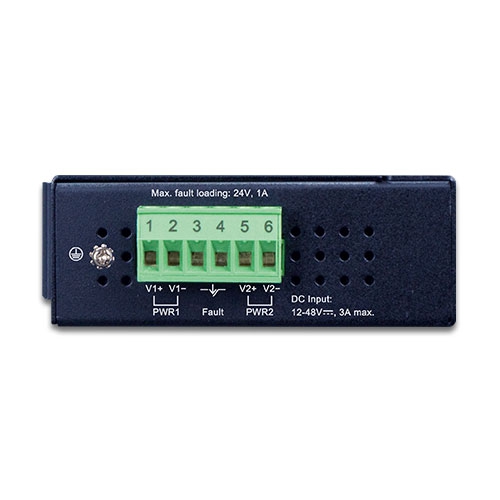

Interface	Input Port: 1 x RJ45 STP (Data In) Output Port: 1 x RJ45 STP (Data + Power Out) Input Power Terminal Block: 1
LED Indicator	System: Power 1 (Green) Power 2 (Green) Fault (Red) PoE Port: PoE-in-use x 1 (Orange)
Network Cable	10BASE-T: UTP Cat. 3, 4, 5, up to 100m (328ft) 100BASE-TX: UTP Cat. 3, 4, 5, up to 100m (328ft) 1000BASE-T: UTP Cat. 5, 5e, 6 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m)
Data Rate	10/100/1000Mbps
Dimensions (W x D x H)	32 x 87 x 135 mm
Weight	489g
Unit Input Voltage	12 ~ 48V DC
Power Consumption	32 watts max.
Number of devices can be powered	1
Installation	DIN-rail kit and wall-mount ear
Alarm	Provides one relay output for power failure; alarm relay current carry ability: 3A @ DC 24V
Enclosure	IP30 slim metal case
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus / mid-span PSE
PoE Power Output	30 watts
PoE Power Supply Type	Mid-span
Power Pin Assignment	4/5(+), 7/8(-)
Standards Conformances
Standards Compliance	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
Regulatory Compliance	FCC Part 15B Class A, CE
Stability Testing	IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
Environment
Operating Temperature	-40 ~ 75 degrees C
Storage Temperature	-40 ~ 85 degrees C
Humidity	5 ~ 95% (non-condensing)
