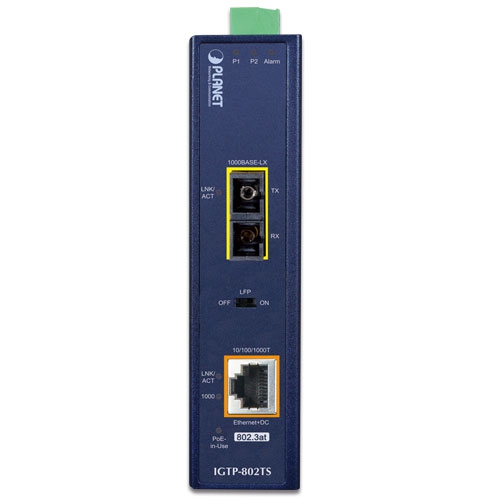

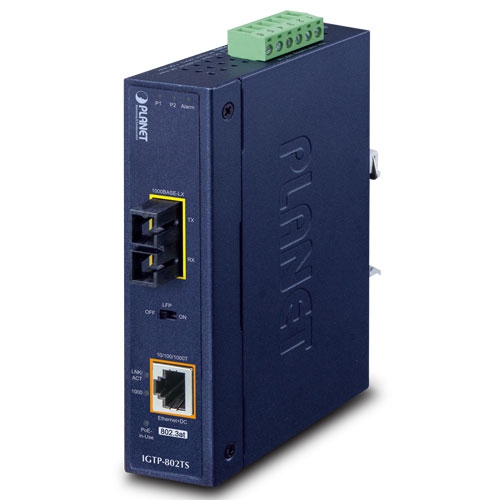

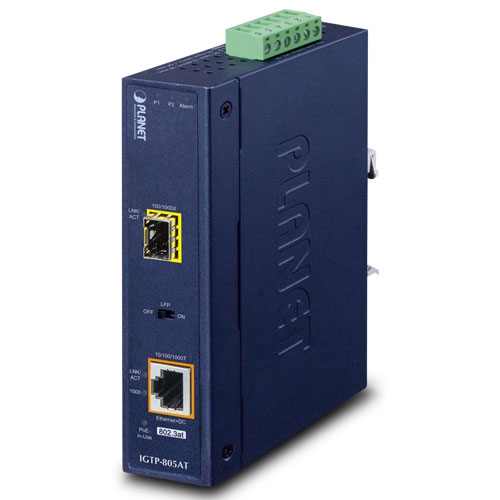

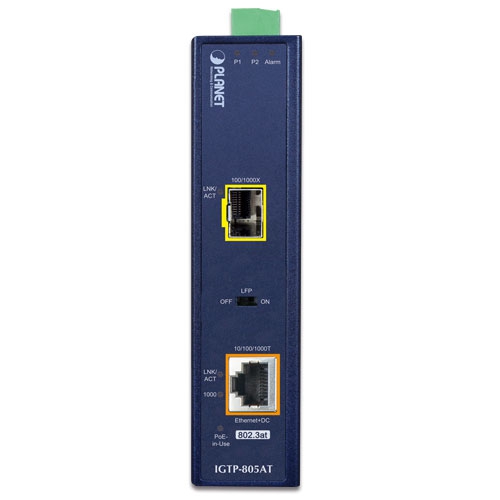

Planet IGTP-80xT Series DIN-rail Fast Ethernet Converter – Price in Qatar
Planet IGTP-80xT Series DIN-rail Fast Ethernet Converter – Price in Qatar
1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Industrial Media Converter.
For the places difficult to find the power outlet, the IGTP-80xT provides the easiest way to power network equipment such as PTZ (Pan, Tilt & Zoom) IP cameras, speed dome IP cameras, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a/b/g/n/ac) wireless LAN access points and other network devices that need higher power to function normally. For instance, users can flexibly install security IP camera, wireless access point and other IEEE 802.3at /IEEE 802.3af compliant network equipment in the public areas such as stations, freeways, airports and campuses for surveillance and wireless roaming needs.
Product Description
| Ethernet Interface | |
|---|---|
| Copper | 10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance. Auto-negotiation, auto MDI/MDI-X with PoE injector function |
| 1000BASE-X Fiber-optic Connector Type | IGTP-802T: SC IGTP-802TS: SC IGTP-805AT: SFP (LC) |
| Fiber Cable | IGTP-802T Multi-mode: 50/125μm or 62.5/125μm optic fiber IGTP-802TS IGTP-805AT |
| Fiber Cable Distance | IGTP-802T: 220m & 550m IGTP-802TS: 20km IGTP-805AT: Varying on SFP Module |
| Fiber Optical Frequency | IGTP-802T: 850nm IGTP-802TS: 1310nm IGTP-805AT: Varying on SFP Module |
| Launch Power | IGTP-802T Max. -3dBm Min. -10dBm IGTP-802TS IGTP-805AT |
| Receive Sensitivity | IGTP-802T: -20dBm IGTP-802TS: -23dBm IGTP-805AT: Varying on SFP Module |
| Maximum Input Power | IGTP-802T: -3dBm IGTP-802TS: -3dBm IGTP-805AT: Varying on SFP Module |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| PoE Power Output | 52V DC: 15.4 watts 52V DC: 30 watts |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 30 watts |
| Hardware Specifications | |
| Speed | Twisted-pair: 10/20Mbps for half/full duplex 100/200Mbps for half/full duplex 1000/2000Mbps for full duplex Fiber Optic: |
| Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
| Maximum Frame Size | 9K |
| LED | System: Power 1, Power 2 (Green)and Alarm LED (Red) Fiber 1000BASE-X: LNK/ACT (Green) TP 10/100/1000BASE-T: LNK/ACT, 1000 LNK/ACT(Green) PoE: Power-in-use (Amber) |
| Dimensions (W x D x H) | 135 x 87 x 32 mm |
| Weight | IGTP-802T: 416g IGTP-802TS: 416g IGTP-805AT: 420g |

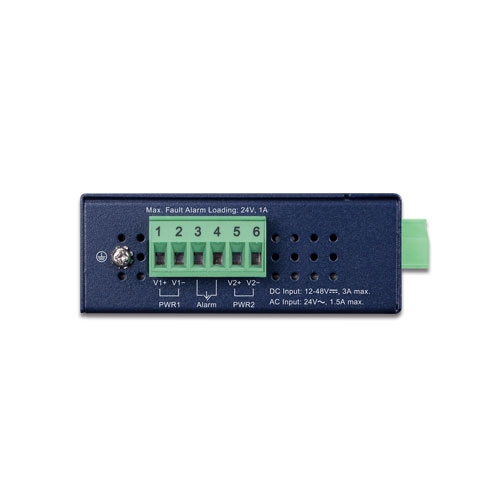

| Unit Input Voltage | 12 ~ 48V DC 24V AC |
| Power Consumption | IGTP-802T System on: AC 24V:4.5W/15BTU DC 12V:4.6W/15BTU DC 48V:4.5W/15BTU Full Loading: IGTP-802TS Full Loading: IGTP-805AT Full Loading: |
| DIP Switch | OFF: LFP (Link Fault Passthrough) disable ON: LFP (Link Fault Passthrough) enable FEF (Far End Fault) works with LFP to prevent data loss LFP is turned off by default on the DIP switch. |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount ear |
| ESD Protection | 6KV DC |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Cables | 10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA/TIA-568 100-ohm STP (maximum 100 meters) 100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125μm or 62.5/125μm optical fiber Single-mode: 9/125μm optical fiber |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
