Planet IGT-815AT DIN-rail Gigabit Ethernet Converter – Price in Qatar

Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T Media Converter.

PLANET IGT-815AT Industrial Gigabit Media Converter offers full port Gigabit speed. It provides very high reliability and security features to make sure the continuous operation in harsh environments such as transportations, factories, outdoors and places where extremely low or high temperatures can be experienced. Moreover, the IGT-815AT is also compatible with100Mbps and 1000Mbps SFP transceivers to provide a strong, stable and long-distance connection and flexible industrial networking deployment.

SKU: IGT-815AT Category: Planet Switches

Product Description

Hardware Specifications
Copper Port	10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance. Auto-negotiation, auto MDI/MDI-X
SFP Port	1000BASE-SX/LX/BX SFP interface Compatible with 100BASE-FX SFP
Flow Control	Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode
Maximum Frame Size	9K
LED	System: Power (Green) Fiber 100/1000BASE-X: LNK/ACT (Green) TP 10/100/1000BASE-T: LNK/ACT(Green), 1000 LNK/ACT(Amber)
Dimensions (W x D x H)	30 x 70 x 104 mm
Weight	221g

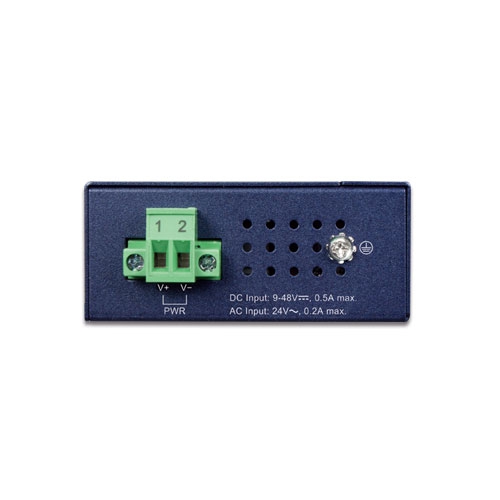

Power Requirements	DC 9~48V, supports reverse polarity protection AC 24V
Power Consumption	System ON without loading DC 9V: 0.55W/1.87BTU DC 12V: 0.54W/1.84BTU DC 24V: 0.52W/1.77BTU DC 36V: 0.5W/1.7BTU DC 48V: 0.52W/1.77BTU AC 24V: 0.5W/1.7BTU Full loading DC 9V: 1.76W/6BTU DC 12V: 1.77W/6BTU DC 24V: 1.63W/5.56BTU DC 36V: 1.65W/5.62BTU DC 48V: 1.68W/5.73BTU AC 24V: 2.8W/9.5BTU
DIP Switch	Off: LFP (Link Fault Passthrough) disable On: LFP (Link Fault Passthrough) enable FEF (Far End Fault) works with LFP to prevent data loss The DIP switch is turned off by default.
Enclosure	IP30 metal case
Installation	DIN-rail kit and wall-mount ear
ESD Protection	6KV DC
Cables	10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA / TIA-568 100-ohm STP (maximum 100 meters) 100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125μm or 62.5/125μm optical fiber Single-mode: 9/125μm optical fiber
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Protocols and Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE)
Stability Testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~85 degrees C
Humidity	Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing)
