Planet IGT-805AT DIN-rail Gigabit Ethernet Converter – Price in Qatar

Industrial 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter.

PLANET IGT-805AT Industrial Gigabit Media Converter offers full port Gigabit speed. It provides very high reliability and security features to make sure the continuous operation in harsh environments such as transportations, factories, outdoors and places where extremely low or high temperatures can be experienced. Moreover, the IGT-805AT is also compatible with 100Mbps and 1000Mbps SFP transceivers to provide a strong, stable and long-distance connection and flexible industrial networking deployment.

SKU: IGT-805AT Category: Planet Switches

Product Description

Hardware Specifications
Copper Interface	1 x 10/100/1000BASE-T RJ45 TP Auto-MDI/MDI-X, auto-negotiation
Fiber Optic Interface	1 x 1000BASE-SX/LX/BX SFP interface. Compatible with 100BASE-FX SFP

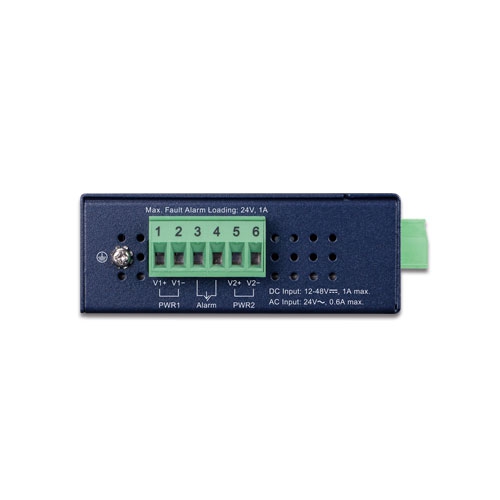

Connector	Removable 6-pin terminal block Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Alarm	Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V
LED	3 x LED for System and Power: ■ Green: DC Power 1 ■ Green: DC Power 2 ■ Red: Power Alarm 2 x LED for Per Copper Port: ■ Green: LNK/ACT ■ Green: 1000 LNK/ACT 1 x LED for Per mini-GBIC Interface ■ Green: LNK/ACT
ESD Protection	6KV DC
Enclosure	IP30 type metal case
Installation	DIN rail kit and wall mount ear
Dimensions (W x D x H)	32 x 87 x 135 mm
Weight	395g
Power Requirements	DC 12~48V, redundant power with reverse polarity protection function. AC 24V power adapter
Power Consumption / Dissipation	2.6 watts/8.8BTU (DC 48V)
Converter Specifications
Flow Control	Back pressure for half duplex. IEEE 802.3x pause frame for full duplex.
Fabric	4Gbps
Throughput (packet per second)	2.97Mpps@64bytes
Maximum Transmission Unit	9216 bytes
Network Cables	10/100/1000BASE-T : Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 1000BASE-SX : 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m (varying on SFP module) 1000BASE-LX : 9/125μm single-mode fiber optic cable, up to 10/20/40/60/80/120 kilometers (varying on SFP module) 100BASE-FX : 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 2 kilometers (varying on SFP module) 9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers (varying on SFP module)
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet IEEE 802.3x full-duplex flow control
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing)
