Planet IGS-620TF Gigabit Ethernet Switch – Price in Qatar
Industrial 4-Port 10/100/1000BASE-T + 2-Port 100/1G/2.5GBASE-X SFP Ethernet Switch.
The IGS-620TF Industrial Gigabit Ethernet Switch offers full port Gigabit speed. It provides very high reliability and security features to make sure the continuous operation in harsh environments such as control cabinet of transportation, factory, outdoors and places where extreme low or high temperatures can be experienced. Moreover, the IGS-620TF is also compatible with 100Mbps, 1000Mbps and 2500Mbps SFP transceivers to provide a strong, stable and long-distance connection and flexible industrial networking deployment.
Product Description
Hardware Specifications | |||||||||
---|---|---|---|---|---|---|---|---|---|
Copper Ports | 4 x 10/100/1000BASE-T RJ45 TP Auto-MDI/MDI-X, auto-negotiation |
||||||||
SFP Slots | 2 x 100/1G/2.5GBASE-X SFP interfaces Supports auto detection |
||||||||
DIP Switch |
|
||||||||

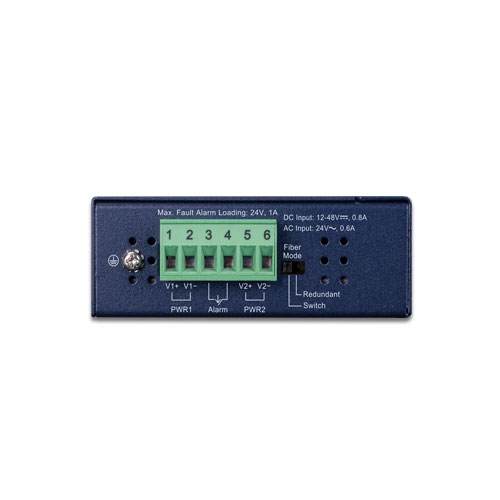

Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power |
||||||||
Alarm | Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V |
||||||||
ESD Protection | 6KV DC | ||||||||
Enclosure | IP30 type metal case | ||||||||
Installation | DIN-rail kit and wall-mount ear | ||||||||
Dimensions (W x D x H) | 32 x 87 x 135mm | ||||||||
Weight | 425g | ||||||||
Power Requirements | DC 12~48V or AC 24V Redundant power with reverse polarity protection |
||||||||
Power Consumption / Dissipation | 7.5watts / 26BTU | ||||||||
LED | 3 x LED for System and Power: ■ Green: DC Power 1 ■ Green: DC Power 2 ■ Red: Alarm 2 x LED for Per Copper Port (Port-1~Port-4): ■ Green: 1G LNK/ACT ■ Amber:100 LNK/ACT 1 x LED for Per SFP interface (Port-5 and Port-6) ■ Green + Amber: 2.5G LNK/ACT ■ Green: 1G LNK/ACT ■ Amber:100 LNK/ACT |
||||||||
Switch Specifications | |||||||||
Switch Processing Scheme | Store-and-Forward | ||||||||
Switch Fabric | 18Gbps | ||||||||
Throughput (packet per second) | 13.39Mpps@64bytes | ||||||||
Address Table | 4K entries | ||||||||
Jumbo Frame | 9216 bytes | ||||||||
Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
||||||||
Standards Conformance | |||||||||
Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.1p Class of Service |
||||||||
Regulatory Compliance | FCC Part 15 Class A, CE | ||||||||
Stability Testing | IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) |
||||||||
Environment | |||||||||
Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
||||||||
Humidity | Operating: 5~95% (Non-condensing) Storage: 5~95% (Non-condensing) |
