Planet IGS-614HPT DIN-rail Unmanaged Gigabit PoE Switch – Price in Qatar

Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch.

Suitable for buildings where security is strictly enforced, the IGS-614HPT, with four Gigabit Ethernet 802.3at PoE+, in-line power interfaces, can easily build a power that can centrally control an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 4 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the IGS-614HPT makes the installation of IP cameras or wireless APs easier and more efficient.

SKU: IGS-614HPT Category: Planet Switches

Product Description

Hardware Specifications
Copper Ports	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE Injector Ports	Four ports with 802.3at PoE+ injector function (Ports 1 to 4)
SFP Slots	1 1000BASE-SX/LX/BX SFP interface Compatible with 100BASE-FX SFP

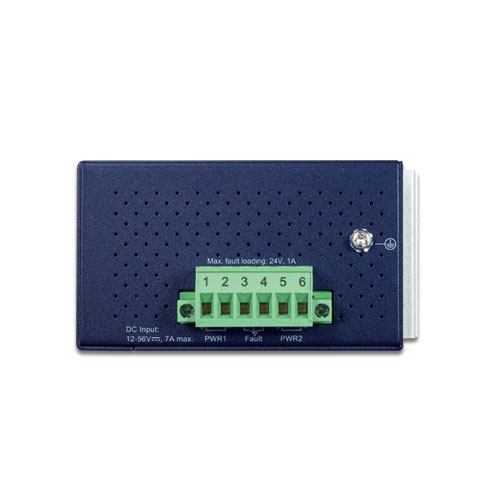

Connector	Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Power Requirements	12~54V DC, 7A (max.) Redundant power with reverse polarity protection
Power Consumption	Max. 5.94 watts/20BTU@54V DC input (System) Max. 139 watts/474BTU(Ethernet + PoE Full Loading)
Dimensions(W x D x H)	50 x 86 x 135 mm
Weight	623g
Enclosure	IP40 metal case
Installation	DIN-rail kit and wall-mount kit
ESD Protection	6KV
LED	3 x LED for System and Power: Green: DC Power Green: DC Power 2 Red: Power Alarm 2 x LED for PoE Copper Port (Ports 1~Port 4): Green: LNK/ACT (10/100/1000Mbps) Amber: PoE-In-Use 2 x LED for 10/100/1000T Copper Port (Port 5): Green: 1000 LNK/ACT Amberr: 10/100 LNK/ACT 2 x LED for 100/1000X SFP Interface (Port 6): Green: 1000 LNK/ACT Amber: 100 LNK/ACT 4 x LED for PoE Power Usage (W) (Low to high): Amber: 30W, 60W, 90W and 120W
Switch Specifications
Switch Architecture	Store-and-Forward
Switch Fabric	12Gbps
Throughput (packet per second)	8.93Mpps@64bytes
Address Table	2K entries
Buffer Memory	4M bits on-chip buffer memory
Jumbo Frame	9Kbytes
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Output	Per port 54V DC, max. 36 watts
PoE Power Budget (max.)	60W@12V DC input 90W@24V DC input 120W@48V-54V DC input
Max. Number of Class 2 PDs	4
Max. Number of Class 3 PDs	4
Max. Number of Class 4 PDs	4
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3af Power over Ethernet Plus IEEE 802.1p Class of Service
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing)
