Planet IGS-604HPT-RJ DIN-rail L2+ Ring Managed Gigabit PoE Switch – Price in Qatar
Planet IGS-604HPT-RJ DIN-rail L2+ Ring Managed Gigabit PoE Switch – Price in Qatar

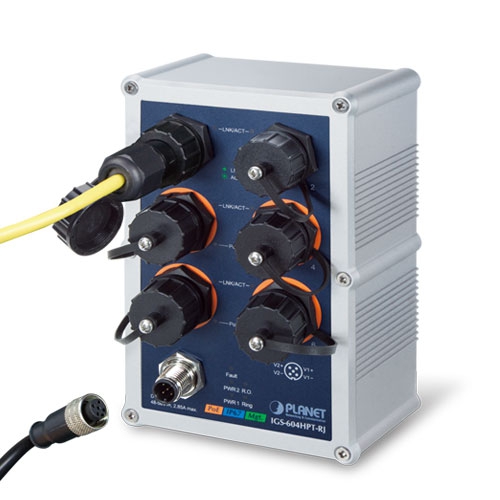

Industrial IP67-rated 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Managed Ethernet Switch (-40~75 degrees C).
The IGS-604HPT-RJ features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) into customer’s automation network to enhance system reliability and uptime. The IGS-604HPT-RJ is the ideal solution for surveillance system to build redundant connection and establish high bandwidth for public transmission system and railway transmission.
Product Description
| Hardware Specifications | |
|---|---|

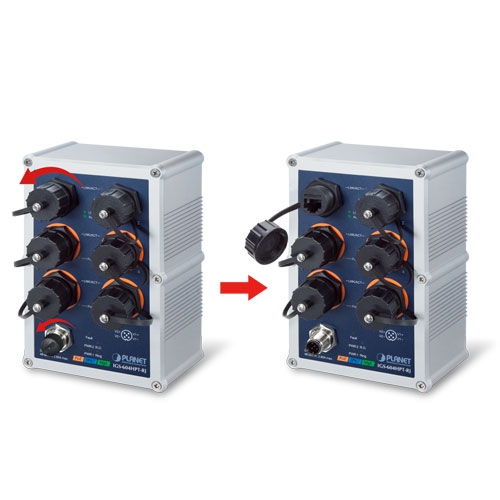

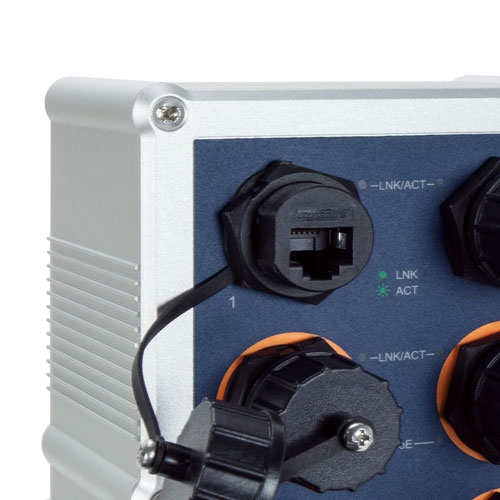

| Copper Ports | 6 10/100/1000BASE-T waterproof and dustproof RJ45 auto-MDI/MDI-X ports |
| PoE Injector Port | 4 ports with 802.3at/af PoE injector function (Port-3 to Port-6) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 12Gbps/non-blocking |
| Throughput | 8.9Mpps@64bytes |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 9Kbytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Dimensions (W x D x H) | 103 x 68.3 x 163 mm |
| Weight | 1069g |
| LED | System: DC1 (Green), DC2 (Green), Fault (Red) Ring (Green), R.O. (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 2): LNK/ACT (Green) 10/100/1000T RJ45 Interfaces (Port 3 to Port 6): LNK/ACT (Green) PoE-in-Use (Orange) |
| Power Consumption | Max. 160 watts/545.9 BTU |
| Power Requirements | Dual 48~56V DC (>53V DC for PoE+ output recommended) |
| EFT Protection | 6KV DC |
| ESD Protection | 6KV DC |
| PoE Standard | IEEE 802.3af/802.3at PoE/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard – Per port 48V~53V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 144 watts max. (depending on power input) |
| PoE Ability | PD @ 7 watts: 4 units PD @ 15.4 watts: 4 units PD @ 30.8 watts: 4 units |
| Layer 2 Management Functions | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged based VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN IP Subnet-based VLAN MVR (Multicast VLAN registration) Up to 255 VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/static trunk 3 groups with 2 port per trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| QoS | Traffic classification based, Strict priority and WRR 8-level priority for switching: – Port number – 802.1p priority – 802.1Q VLAN tag – DSCP/ToS field in IP packet |
| IGMP Snooping | IGMP (v1/v2/v3) snooping, up to 255 multicast groups IGMP querier mode support |
| MLD Snooping | MLD (v1/v2) snooping, up to 255 multicast groups MLD querier mode support |
| Access Control List | IP-based ACL/MAC-based ACL Up to 256 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps |
| Layer 3 Functions | |
| IP Interfaces | Max. 8 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 software static routing IPv6 software static routing |
| Management | |
| Basic Management Interfaces | Telnet/Web browser/SNMP v1, v2c |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Group 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP Power over Ethernet MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 80 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
