Planet IGS-504HPT DIN-rail Unmanaged Gigabit PoE Switch – Price in Qatar
Planet IGS-504HPT DIN-rail Unmanaged Gigabit PoE Switch – Price in Qatar
Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T Gigabit Ethernet Switch.
Suitable for buildings where security is strictly enforced, the IGS-504HPT, with four Gigabit Ethernet 802.3at PoE+, in-line power interfaces, can easily build a power that can centrally control an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 4 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the IGS-504HPT makes the installation of IP cameras or wireless APs easier and more efficient.
Product Description
| Hardware Specifications | |
|---|---|
| Copper Ports | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| PoE Injector Ports | Four ports with 802.3at PoE+ injector function (Ports 1 to 4) |

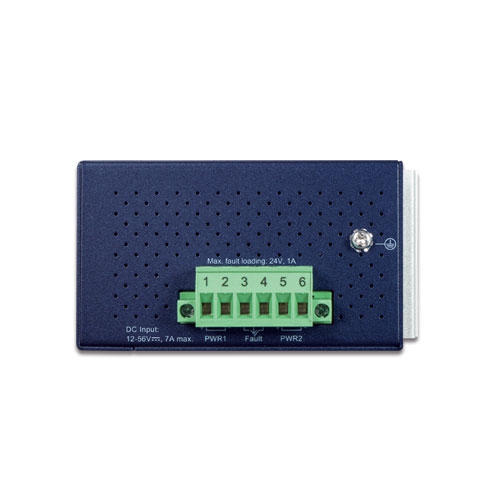

| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Power Requirements | 12~54V DC, 7A (max.) Redundant power with reverse polarity protection function |
| Power Consumption | Max. 6.48 watts/22BTU@54V DC input (System) Max. Max. 137 watts/467BTU(Ethernet + PoE Full Loading) |
| Dimensions (W x D x H) | 50 x 86 x 135 mm |
| Weight | 618g |
| Enclosure | IP40 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| ESD Protection | 6KV |
| LED | 3 x LED for System and Power: Green: DC Power 1 Green: DC Power 2 Red: Power Alarm 2 x LED for PoE Copper Port (Port 1~Port 4): Green: LNK/ACT (10/100/1000Mbps) Amber: PoE-In-Use 2 x LED for 10/100/1000T Copper Port (Port 5): Green: 1000 LNK/ACT Amber: 10/100 LNK/ACT 4 x LED for PoE Power Usage (W) (Low to high): Amber: 30W, 60W, 90W and 120W |
| Switch Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 10Gbps |
| Throughput (packet per second) | 7.4Mpps@64bytes |
| Address Table | 2K entries |
| Buffer Memory | 4M bits on-chip buffer memory |
| Jumbo Frame | 9Kbytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Output | Per port 54V DC, max. 36 watts |
| PoE Power Budget (max.) | 60W@12V DC input 90W@24V DC input 120W@48V-54V DC input |
| Max. Number of Class 2 PDs | 4 |
| Max. Number of Class 3 PDs | 4 |
| Max. Number of Class 4 PDs | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3af Power over Ethernet Plus IEEE 802.1p Class of Service |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
