Planet IGS-500T Gigabit Ethernet Switch – Price in Qatar

Planet IGS-500T Gigabit Ethernet Switch – Price in Qatar

Compact Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch.

The IGS-500T’s IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data.

SKU: IGS-500T Category:

Product Description

Hardware Specifications
Hardware Version 2
Copper Ports 5 x 10/100/1000BASET RJ45 TP auto-MDI/MDI-X, auto negotiation

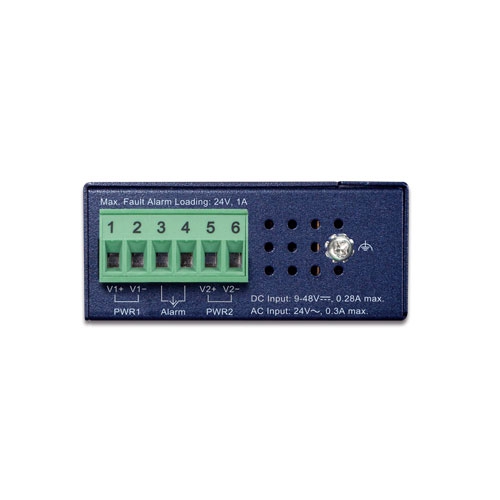

Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 1A@DC 24V
LED 3 x LED for system and power:
Green: DC Power 1
Green: DC Power 2
Red: Power Alarm
2 x LED for each copper port:
Green: 1000Mbps LNK/ACT
Amber: 10/100Mbps LNK/ACT
ESD Protection 6KV
EFT Protection 6KV
Power Requirements 9~48V DC, redundant power with polarity reverse protection function, 24V AC power support
Power Consumption / Dissipation 1.2 watts/4.09BTU
Installation DIN-rail kit and wall-mount ear
Enclosure IP30 metal case
Dimensions (W x D x H) 30 x 70 x 104 mm
Weight 264g
Switch Specifications
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Buffer Memory 4M bits on-chip buffer memory
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Switch Fabric 10Gbps
Throughput (packet per second) 7.4Mpps@64bytes
Jumbo Frame 9K
Network Cables 10/100/1000BASE-T
Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters)
EIA/TIA-568 100-ohm STP (max. 100 meters)
Standards Conformance
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90%, Storage: 5~90% (non-condensing)
