Planet IGS-4215-8T2S L2/L4 Managed Gigabit Ethernet Switch – Price in Qatar
Planet IGS-4215-8T2S L2/L4 Managed Gigabit Ethernet Switch – Price in Qatar
Industrial L2/L4 8-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch.
Suitable for buildings where security is strictly to be enforced, the IGS-4215-8T2S, with eight high-speed Gigabit Ethernet interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment.
Product Description
| Hardware Specifications | |
|---|---|
| Copper Ports | 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| Gigabit SFP Slots | 2 100/1000BASE-SX/LX/BX SFP interfaces |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |

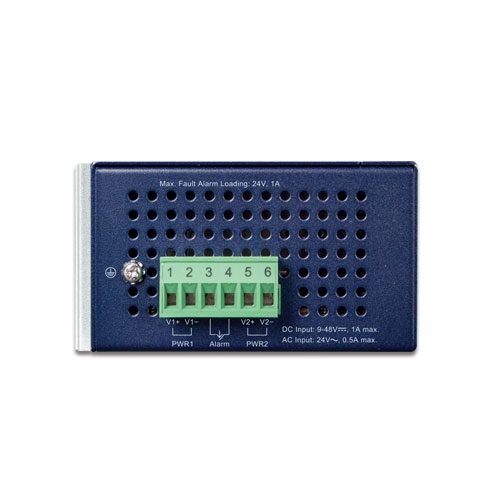

| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1 Pin 3/4 for fault alarm Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Power Requirements | Dual 9~48V DC 24V AC |
| Power Consumption | DC input: Max. 1.98 watts/6.7BTU (System on) Max. 6.93 watts/23.6BTU (Full loading) AC input: Max. 1.4 watts/4.7BTU (System on) Max. 5.7 watts/19.4BTU (Full loading) |
| Enclosure | IP30 metal case |
| Dimensions (W x D x H) | 50 x 87.8 x 135 mm |
| Weight | 510g |
| Installation | DIN-rail kit and wall-mount ear |
| ESD Protection | 6KV DC |
| LED | System: Green: Power 1 Green: Power 2 Red: Alarm Green: Ring Green: R.O. Per 10/100/1000T RJ45 Ports: Green: 1000 LNK/ACT Amber: 10/100 LNK/ACT Per 100/1000X SFP Ports: Green: 1000 LNK/ACT Amber: 100 LNK/ACT |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20G/bps (non-blocking) |
| Switch Throughput@64 bytes | 14.8@ 64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 4.1Mbits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 9K |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/Both Many-to-1 monitor Up to 4 sessions |
| VLAN | 802.1Q tag-based VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Up to 256 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP and static trunk Cisco ether-channel (Static Trunk) Up to 5 trunk groups Up to 10 ports per trunk group with 20Gbps bandwidth |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | IPv4 IGMP snooping v1, v2, v3 IGMP querier IGMP Snooping port filtering Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD snooping v1, v2 Up to 256 multicast groups |
| QoS | Ingress/Egress Rate Limit per port bandwidth control 8-level priority for switching Port number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Typical network application DSCP remarking |
| Security Functions | |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE |
| Security | IP-MAC port binding MAC filtering Static MAC address DHCP Relay and DHCP Option 82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard Storm control support Broadcast / Multicast / Unicast |
| AAA | Built-in RADIUS client to cooperate with RADIUS server |
| Network Access Control | IEEE 802.1X port-based authentication RADIUS/TACACS+ user access authentication |
| Management Functions | |
| Basic Management Interfaces | Telnet Web browser SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLS v1.1/v1.2, SNMPv3 |
| System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP LLDP protocol SNTP PLANET Smart Discovery Utility PLANET UNI-NMS (Universal Network Management) PLANET CloudViewer app |
| Event Management | Remote Syslog System log |
| SNMP MIBs | RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP MAU-MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3az for Energy-Efficient Ethernet RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU-T G.8032 ERPS Ring |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
