Planet IGS-1020TF Gigabit Ethernet Switch – Price in Qatar

Industrial 8-Port 100/1000T + 2 1000X SFP Ethernet Switch (-40~75 degrees C).

The IGS-1020TF Industrial Gigabit Ethernet Switch offers full port Gigabit speed. It provides very high reliability and security features to make sure the continuous operation in harsh environments such as control cabinet of transportation, factory, outdoors and places where extreme low or high temperatures can be experienced. Moreover, the IGS-1020TF is also compatible with 100Mbps and 1000Mbps SFP transceivers to provide a strong, stable and long-distance connection and flexible industrial networking deployment.

SKU: IGS-1020TF Category: Planet Switches

Product Description

Hardware Specifications
Copper Ports	8 x 100/1000BASE-T RJ45 TP Auto-MDI/MDI-X, auto-negotiation
SFP/mini-GBIC Slots	2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10) Compatible with 100BASE-FX SFP
Switch Processing Scheme	Store-and-Forward
Switch Fabric	20Gbps (non-blocking)
Switch Throughput (packet per second)	14.88Mpps@64bytes
MAC Address Table	4K entries
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Jumbo Frame	9216 bytes

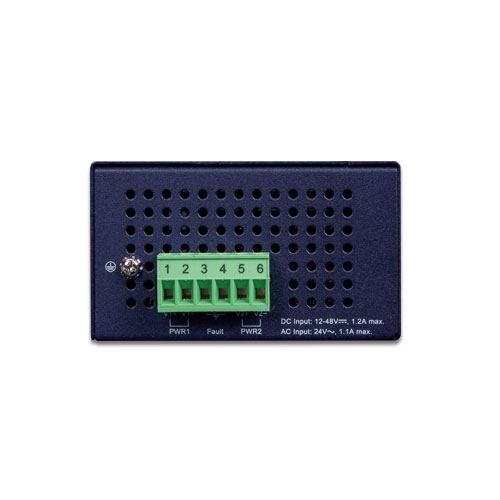

Connector	Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm	Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V
LED Indicator	3 x LED for System and Power: Green: DC Power 1 Green: DC Power 2 Red: Power Fault 2 x LED for Per Copper Port (Port-1~Port-8): Green: 1000 LNK/ACT Orange:100 LNK/ACT 2 x LED for Per Mini-GBIC Interface (Port-9 and Port-10): Green: 1000 LNK/ACT Orange:100 LNK/ACT
ESD Protection	6KV DC
Enclosure	IP30 type metal case
Installation	DIN rail kit and wall-mount ear
Dimensions (W x D x H)	50 x 87 x 135 mm
Weight	540g
Power Requirements	DC 12~48V or AC 24V Redundant power with polarity reverses protection function
Power Consumption/Dissipation	8.7 watts/29.69BTU
Cable	Twisted-pair ■ 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters ■ 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters ■ 1000BASE-T: 4-pair UTP Cat. 5e, 6 up to 100 meters Fiber-Optic Cable  ■ 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m ■ 1000BASE-LX: 9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (vary on SFP module) ■ 100BASE-FX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 2 kilometers 9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers (vary on SFP module)
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet/10BASE-T IEEE 802.3u Fast Ethernet/100BASE-TX IEEE 802.3ab Gigabit Ethernet/1000BASE-T IEEE 802.3z Gigabit Ethernet/1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.1p Cos
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (anti-shock) IEC 60068-2-6 (anti-vibration)
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing)
