Planet IGS-1020PTF DIN-rail Unmanaged Gigabit PoE Switch – Price in Qatar

Planet IGS-1020PTF DIN-rail Unmanaged Gigabit PoE Switch – Price in Qatar

Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch.

Suitable for buildings where security is strictly enforced, the IGS-1020PTF, with eight Gigabit Ethernet 802.3at PoE+ in-line power interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 8 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the IGS-1020PTF makes the installation of IP cameras or wireless APs easier and more efficient.

SKU: IGS-1020PTF Category:

Product Description

Hardware Specifications
Copper Ports 8 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE Injector Ports 8 ports with 802.3at PoE+ injector function (Ports 1 to 8)
SFP Slots 2 1000BASE-SX/LX/BX SFP interfaces (Ports 9 to 10)
Compatible with 100BASE-FX SFP

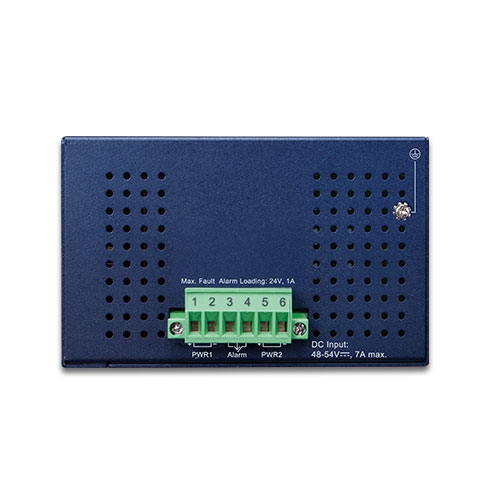

Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
DIP Switch Standard/Extend mode (Extend mode for Ports 5 to 8 only)
Power Requirements 48~54V DC, 7A (max.)
Power Consumption Max. 5.6 watts/19BTU@54V DC input (System)
Max. 7.28 watts/24BTU@54V DC input (Ethernet Full Loading)
Max. 265.1 watts/904BTU@54V DC input (Ethernet + PoE Full Loading)
Dimensions (W x D x H) 66 x 106 x 152 mm
Weight 837g
Enclosure IP30 metal case
Installation DIN-rail/ wall-mount/side wall-mount
ESD Protection 6KV
LED Indicators 3 x LED for System and Power:
Green: DC Power 1
Green: DC Power 2
Red: Power Fault Alarm

8 x LED for PoE Copper Port (Ports 1 to 8):
Green: LNK/ACT (10/100/1000Mbps)
Amber: PoE-in-Use

2 x LED for 100/1000X Fiber Port (Ports 9 to 10):
Green: LNK/ACT (100/1000Mbps)
Amber: 1000Mbps

4 x LED for PoE Usage
Amber: 60W, 120W, 180W and 240W

Switch Specifications
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps
Throughput (packet per second) 14.8Mpps@64bytes
Address Table 8K entries
Buffer Memory 4M bits on-chip buffer memory
Jumbo Frame 9Kbytes
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Power over Ethernet
PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
Power Pin Assignment 1/2 (+), 3/6 (-)
PoE Power Output Per port 48~54V DC. Max. 30 watts
PoE Power Budget (max.) 240W maximum
Max. Number of Class 3 PDs@25W 8
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~85 degrees C
Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
