Planet IGS-10020MT L2+ Ring Managed Gigabit Ethernet Switch – Price in Qatar
Planet IGS-10020MT L2+ Ring Managed Gigabit Ethernet Switch – Price in Qatar
Industrial 6-Port 100/1000X SFP + 2-Port 1G/2.5G SFP + 2-Port 10/100/1000T Managed Switch.
The IGS-10080MFT offers high performance and high reliability to make sure the continuous industrial operation in harsh environments such as transportation, factory floors, outdoors, and the places with extreme low or high temperatures. With a non-blocking design and desktop size, the installation of the IGS-10080MFT is easy and helpful to build up a Gigabit high-bandwidth switched network quickly.
Product Description
| Hardware Specifications | |
|---|---|
| Copper Ports | 8 10/ 100/1000BASE-T RJ-45 Auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 100/1000/2500BASE-X mini-GBIC SFP ports (Port-9 and Port-10) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 26Gbps / non-blocking |
| Throughput (packet per second) | 14.8Mpps |
| Address Table | 8K entries, automatic source address learning and ageing |
| Shared Data Buffer | 512 kilobytes |
| Flow Control | IEEE 802.3x pause frame for full duplex. Back pressure for half duplex |
| Jumbo Frame | 9Kbytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory Default |
| ESD Protection | 6KV DC |
| Enclosure | IP30 aluminum metal case |
| Installation | DIN-rail kit and wall-mount kit |

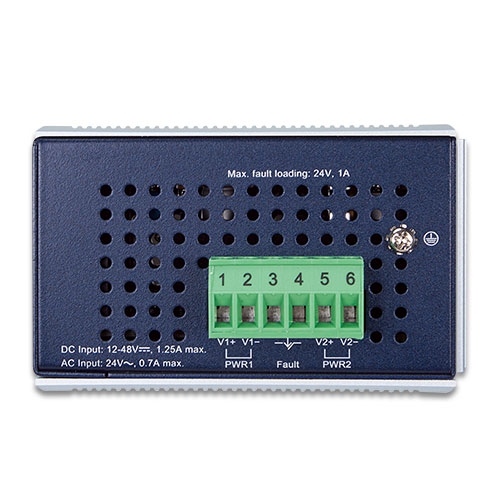

| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ DC 24V |
| LED Indicator | System: Power 1 (Green) Power 2 (Green) Fault Alarm (Green) Ring (Green) R.O. (Green) Per 10/100/1000T RJ-45 Ports: LNK/ACT (Green) 1000 (Orange) Per 100/1000/2500BASE-X SFP Interface: 1G/2.5G LNK/ACT (Green) 100 LNK/ACT (Orange) |
| Dimensions (W x D x H) | 56 x 86.1 x 135 mm |
| Weight | 720g |
| Power Requirements | Dual 12~48V DC 24V AC |
| Power Consumption | 10 watts / 34BTU (full loading) |
| Layer 2 function | |
| Basic Management Interfaces | Web Browser, Remote Telnet, SNMP v1, v2c |
| Secure Management Interface | SSHv2, TLSv1.2, SNMPv3 |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable Power saving mode control |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, and trunk status. |
| Port Mirroring | TX/RX/Both Many to 1 monitor |
| VLAN | 802.1Q tagged VLAN ,up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 4K VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP / static trunk Support 5 trunk groups with 10 ports per trunk |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching – Port number – 802.1p priority – 802.1Q VLAN tag – DSCP/TOS field in IP packet |
| IGMP Snooping | IGMP (v1/v2/V3) Snooping, up to 255 multicast groups IGMP Querier mode support |
| MLD Snooping | MLD (v1/v2) Snooping, up to 255 multicast groups MLD Querier mode support |
| Access Control List | IP-based ACL / MAC-based ACL Up to 123 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 500Kb~80Mbps Egress: 64Kb~80Mbps |
| SNMP MIBs | RFC-1213 MIB-II IF-MIB RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2819 RMON MIB (Groups 1, 2, 3 and 9) RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2933 IGMP-STD-MIB RFC3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB |
| Layer 3 Function | |
| IP Interfaces | Max. 8 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 software static routing IPv6 software static routing |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit 1000T IEEE 802.3z Gigabit SX/LX IEEE 802.3bz 2.5GBASE-X IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ah OAM IEEE 802.1ag Connectivity Fault Management(CFM) IEEE 1588 PTPv2 RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 FRC 3810 MLD version 2 ITU-T G.8032 ERPS Ring ITU-T Y.1731 Performance Monitoring |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
