Planet IFT-802T / IFT-802TS15 / IFT-805AT DIN-rail Fast Ethernet Converter – Price in Qatar
Planet IFT-802T / IFT-802TS15 / IFT-805AT DIN-rail Fast Ethernet Converter – Price in Qatar
10/100Base-TX to 100Base-FX Industrial Media Converter with Wide Operating Temperature.
PLANET’s Industrial Media Converter, IFT-80xT series, offers high reliability and security to guarantee the continuous industrial operation in harsh environments such as control cabinet of transportation, factory floors or and environments with extremely low or high temperature. In the industrial networking environments, each networked device is required to keep running continuously in the hazardous status. If industrial equipment fails to connect to the network, it might influence the entire operation of industrial systems and thus cause incredibly financial loss. With the IFT-80xT Industrial Media Converter, which complies with all the requirements of industrial applications, customers may enjoy high reliability, fast recovery capability, and safe Ethernet network operation.
Product Description
| Hardware Specifications | |
|---|---|
| 10/100Base-TX Port | 1 RJ-45 auto-MDI / MDI-X port |
| 100Base-FX Port | IFT-802T: 1 SC interface IFT-802TS15: 1 SC interface IFT-805AT: 1 SFP slot |
| Fiber Port Type | IFT-802T: SC / multi-mode IFT-802TS15: SC / single-mode IFT-805AT: Vary on module |
| Cable Distance | IFT-802T: 2km IFT-802TS15: 15km IFT-805AT: Vary on module |
| Optical Frequency | IFT-802T: 1310nm IFT-802TS15: 1310nm IFT-805AT: Vary on module |
| Launch Power (dBm) | Max IFT-802T: -14 IFT-802TS15: 0Min IFT-802T: -20 IFT-802TS15: -20Vary on module IFT-805AT |
| Receive Sensitivity (dBm) | IFT-802T: -32 IFT-802TS15: -32 IFT-805AT: Vary on module |
| Maximum Input Power (dBm) | IFT-802T: -14 IFT-802TS15: 0 IFT-805AT: Vary on module |
| Dimensions (W x D x H) | 135 x 85 x 32 mm |
| Weight | 430g |
| Installation | DIN rail kit and wall mount ear |
| Maximum Frame Size | 1522bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure | IP-30 slim type metal case |
| LED Indicator | System: •Power 1 (Green) •Power 2 (Green) •Fault (Green) 1 x copper port: •10/100 (Green) •LNK/ACT (Green) 1 x 100FX port: •100 (Green) •LNK/ACT (Green) |

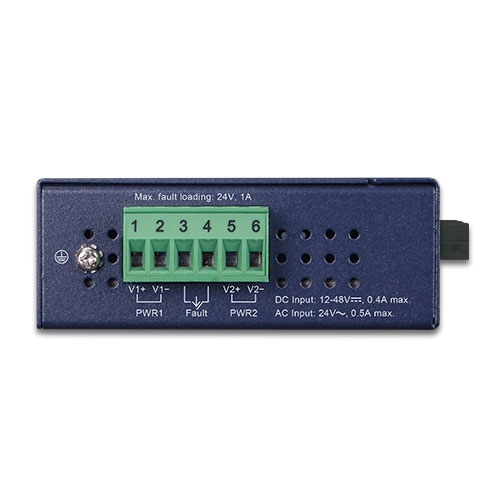

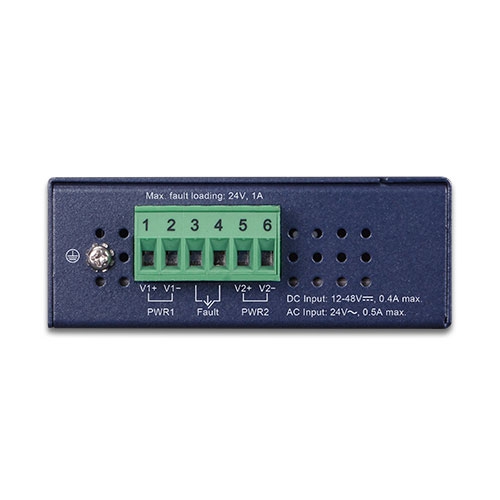

| Power Input | 12 to 48V DC redundant power with polarity reverse protection function Single AC 24V power adapter acceptable |
| Power Consumption | 3 watts/ 10BTU (maximum) |
| Protection | ESD (Ethernet): 6KV DC Surge (Power): 6KV DC |
| Speed | Twisted-pair: •10/20Mbps for half / full-duplex •100/200Mbps for half / full duplex Fiber-optic: •200Mbps for full-duplex |
| Network cables | 10/100Base-TX: •2-pair UTP Cat. 3, 4, 5 (100 meters, max.) •EIA/TIA-568 100-ohm STP (100 meters, max.) 100Base-FX: •IFT-802T: Multi-mode optical fiber 62.5/125μm / 50/125μm (2km) •IFT-802TS15: Single-mode optical fiber 9/125μm (15km) •IFT-805AT: SFP slot (depending on SFP module) |
| Standards Conformance | |
| Emissions | FCC Class A, CE Class A |
| Standards Compliance | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX / 100Base-FX IEEE 802.3x flow control and back pressure |
| Stability Testing | IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Environment | |
| Operating Temperature | -40~75 degrees C |
| Operating Humidity | 5~95% non-condensing |
| Storage Temperature | -40~85 degrees C |
| Storage Humidity | 5~95% non-condensing |
