Planet IFGS-1822TF Fast Ethernet Switch – Price in Qatar
Planet IFGS-1822TF Fast Ethernet Switch – Price in Qatar
Industrial 16-Port 10/100TX + 2-Port Gigabit TP/SFP Combo Ethernet Switch.
The IGS-1822TF’s IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. Suitable for buildings where security is strictly enforced, the IFGS-1822TF, with sixteen Fast Ethernet interfaces, can easily build an IP phone system, IP surveillance system, security control system and wireless AP group in the harsh Industrial environment.
Product Description
| Hardware Specifications | |
|---|---|
| Fast Ethernet Copper Ports | 16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| Gigabit Ethernet Copper Ports | Two 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (shared with Port-17 and Port-18) |
| SFP Slots | Two 1000BASE-SX/LX/BX SFP interfaces (shared with Port-17 and Port-18) |
| ESD Protection | 6KV DC |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount kit |

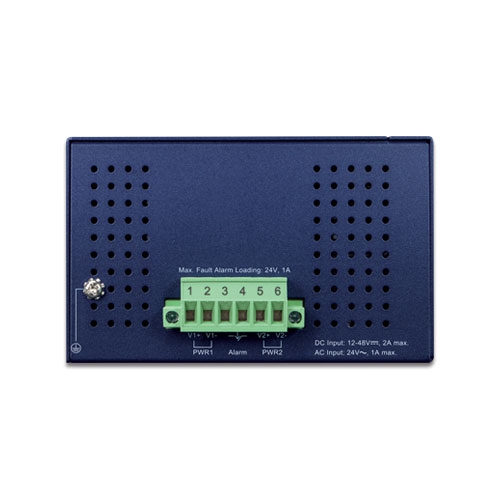

| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Dimensions (W x D x H) | 66 x 107 x 152 mm |
| Weight | 870g |
| Power Requirements | Dual 12~48V DC or one 24V AC |
| Power Consumption | Max. 6.3 watts/21.4BTU (Ethernet full loading) |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 7.2Gbps (non-blocking) |
| Throughput (packet per second) | 5.36Mpps@ 64 bytes |
| Address Table | 16K entries, automatic source address learning and aging |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure IEEE 802.1p Class of Service IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
