Industrial 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Ethernet Switch.

Suitable for buildings where security is strictly enforced, the IFGS-1022HPT, with eight Fast Ethernet 802.3at PoE+, in-line power interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 8 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the IFGS-1022HPT makes the installation of IP cameras or wireless APs easier and more efficient.

SKU: IFGS-1022HPT Category: Planet Switches

Product Description

Hardware Specifications
Fast Ethernet Copper Ports	Eight 10/100BASE-TX RJ45 auto-MDI/MDI-X ports (Ports 1 to 8)
Gigabit Ethernet Copper Ports	Two 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (shared with Ports 9 to 10)
SFP/mini-GBIC Slots	Two 1000BASE-SX/LX/BX SFP interfaces (shared with Ports 9 to 10)
PoE Injector Port	Eight ports with 802.3af/802.3at PoE+ injector function (Ports 1 to 8)
DIP Switch (Port-1 to Port-8)	Standard mode: 30-watt PoE transmit distance of 100m at speed of 10/100Mbps Extend mode: 30-watt PoE transmit distance of 250m at speed of 10Mbps

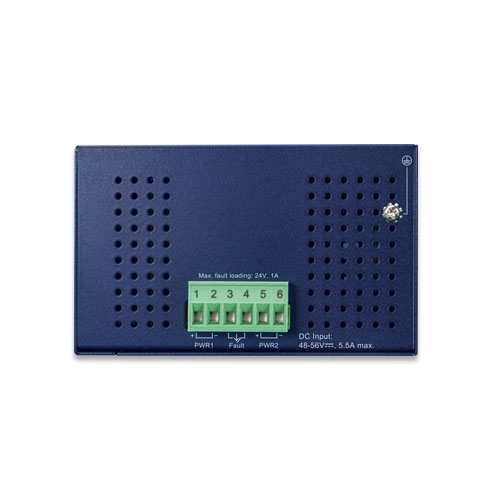

Connector	Removable 6-pin terminal block ■ Pin 1/2 for Power 1 ■ Pin 3/4 for power fault alarm ■ Pin 5/6 for Power 2
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC
Power Requirements	48~54V DC, 5.5A (max.) (>51V DC for PoE+ output recommended)
Power Consumption/ Dissipation	4.3 watts, 14.6BTU (Standby without PoE function) at DC 54V power input 256 watts, 873BTU (Full loading with PoE function) at DC 54V power input
Dimensions (W x D x H)	66 x 107 x 152 mm
Weight	829g
ESD Protection	6KV DC
Enclosure	IP30 metal case
Installation	DIN-rail kit and wall-mount kit
LED	3 x LED for System and Power: ■ Green: DC Power 1 ■ Green: DC Power 2 ■ Red: Power Fault Alarm 2 x LED for PoE Copper Port (Port-1~Port-8): ■ Green: LNK/ACT (10/100Mbps) ■ Amber: PoE-In-Use 2 x LED for 10/100/1000T Copper Port (Port-9~Port-10): ■ Green: LNK/ACT ■ Amber: 1000 2 x LED for per mini-GBIC interface (Port-9~Port-10) ■ Green: LNK/ACT ■ Amber: 1000
Switching Specifications
Switch Architecture	Store-and-Forward
Switch Fabric	5.6Gbps/non-blocking
Switch Throughput@64 bytes	4.1Mpps @64 bytes
MAC Address Table	16K entries
Shared Data Buffer	4Mb SRAM
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Jumbo Frame	10 Kbytes
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Output	IEEE 802.3af Standard – Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard – Per port 51V~54V DC (depending on the power supply), max. 30 watts
PoE Power Budget	Dual power input: maximum 240W (depending on power input)
Max. Number of Class 2 PDs	8
Max. Number of Class 3 PDs	8
Max. Number of Class 4 PDs	8
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
Operating Temperature	-40 ~ 75 degrees C
Storage Temperature	-40 ~ 85 degrees C
Humidity	5 ~ 95% (non-condensing)
