Industrial 5G NR Cellular Wireless Gateway with 1-Port 1000X SFP.

PLANET ICG-2515FW-NR adopts 5G NR cellular technology and thus breaks the 100m limitation of RJ45 transmission. To avoid data loss affected by an unexpected breakdown connection on the part of ISP, the ICG-2515FW-NR provides dual SIM card slots and failover functions and advanced features like VLAN, VPN, Modbus, and network management to cover more applications.

SKU: ICG-2515FW-NR Category: Planet Switches

Product Description

Hardware Specifications

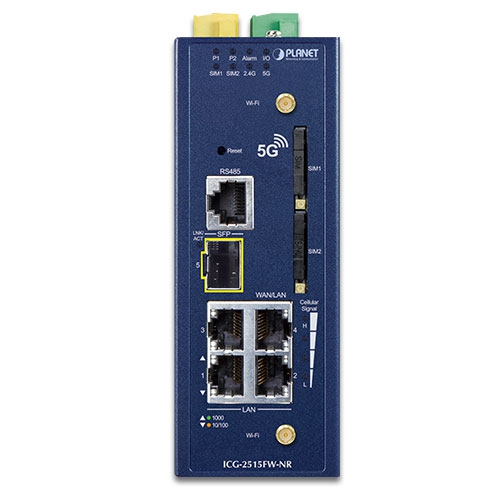

Ethernet

4 10/100/1000BASE-T RJ45 Ethernet ports including
3 LAN ports (Ports 1 to 3)
1 LAN/WAN port (Port 4)

Fiber

1 1000BASE-X SFP slot
1 LAN/WAN port (Port 5)

Serial Interface

RJ45 serial port

SIM Interface

2 SIM card slots with mini SIM card tray

Cellular Antenna

5 dBi external antennas with SMA connectors for 5G-NR

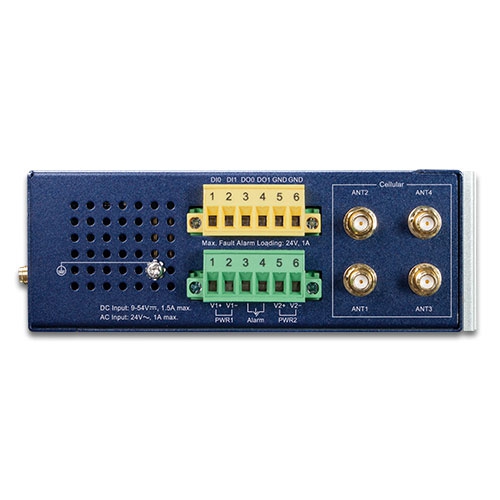

DI & DO Interfaces

2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.

2 Digital Output (DO):
Open collector to 24V DC, 100mA max.

Connector

Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2

Reset Button

< 5 sec: System reboot
> 5 sec: Factory default

Enclosure

IP30 metal case

Installation

DIN rail, desktop, wall-mounting

LED Indicators

System:
P1 (Green)
P2 (Green)
Alarm (Red)
I/O (Red)

Ethernet Interfaces (Port1-4):
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)

Fiber Interfaces (Port 5):
1000 LNK/ACT (Green)

Cellular SIM:
SIM1 and SIM2 (Green)

Wi-Fi:
2.4G(Green)
5G(Green)

Cellular signal:
4 levels (Green)

Dimensions (W x D x H)

50 x 135 x 135 mm

Weight

0.9 kg

Power Requirements – DC

9~54V DC, 1.5A

Power Consumption

11.34 W / 38.69 BTU

Multi Band Supports

5G NR

n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79

LTE-FDD

B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/
B32/B46/B66/B71

LTE-TDD

B34/B38/B39/B40/B41/B42/B43/B48

WCDMA

B1/B2/B3/B4/B5/B8

GNSS

GPS L1+L5 dual bands/GLONASS/BeiDou/Galileo/QZSS

Data Transmission Throughput

2.4Gbps (DL)/500Mbps (UL) for NR
1Gbps (DL)/200Mbps (UL) for LTE
42Mbps (DL)/5.76Mbps (UL) for HSPA+

Wireless

Standard

IEEE 802.11a/n/ac/ax 5GHz
IEEE 802.11g/b/n/ax 2.4GHz

Band Mode

2.4G & 5G concurrent mode

Frequency Range

2.4GHz	America FCC: 2.412~2.462GHz Europe ETSI: 2.412GHz~2.472GHz
5GHz	5.15GHz ~5.875GHz

Operating Channels

2.4GHz

America FCC: 1~11
Europe ETSI: 1~13

5GHz

America FCC
Non-DFS: 36, 40, 44, 48, 149,153,157,161,165
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140

Europe ETSI:
Non-DFS: 36, 40, 44, 48, 149,153,157,161,165
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140

*5GHz channel list will vary in different countries according to their regulations.

Channel Width

20MHz, 40MHz, 80MHz

Data Transmission Rates

Transmit: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz
Receive: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz

*The estimated transmission distance is based on the theory. The actual distance will vary in different environments.

Transmission Power

11b: 23dbm+/- 1.5dbm @11Mbps
11g: 20dbm+/- 1.5dbm @54Mbps
11g/n: 20dBm +/- 1.5dbm @MCS7, HT20
17dBm@MCS7,HT40
11a: 19.5dBm +/- 1.5dbm @54Mbps
11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20
17dBm@MCS7, HT40
11ac HT20: 20+/-1.5dBm @MCS8
11ac HT40: 17+/-1.5dBm @MCS9
11ac HT80: 14.5+/-1.5dBm @MCS9
11ax HT20: 20+/-1.5dBm @MCS9
11ax HT40: 17 +/- 1.5dBm @MCS9
11ax HT80: 14.5 +/- 1.5dBm @MCS11

Encryption Security

WPA / WPA2 (TKIP/AES)
WPA-PSK (TKIP/AES) / WPA2-PSK (TKIP/AES) / WPA3-PSK
802.1x Authenticator

Wireless Advanced

Wi-Fi Multimedia (WMM)
Auto channel selection
Wireless output power management
MAC address filtering

Advanced Functions

VPN

IPSec/Remote Server (Net-to-Net, Host-to-Net)
GRE
PPTP Server
L2TP Server
SSL Server/Client (Open VPN)

VPN Tunnels

Max. 60

VPN Throughput

Max. 60Mbps

Encryption Methods
