Industrial 5G NR Cellular Gateway with 5-Port 10/100/1000T.

PLANET ICG-2515-NR adopts 5G NR cellular technology and thus breaks the 100m limitation of RJ45 transmission. To avoid data loss affected by an unexpected breakdown connection on the part of ISP, the ICG-2515-NR provides dual SIM card slots, failover, load balance functions and advanced features like VLAN, VPN, Modbus, and network management to cover more applications.

SKU: ICG-2515-NR Category:

Product Description

Hardware Specifications

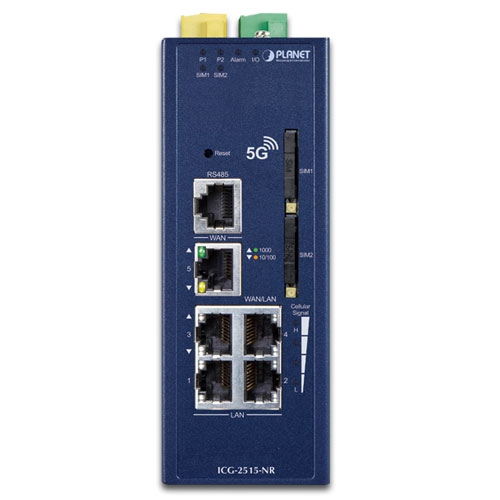

Copper Ports 5 10/100/1000BASE-T RJ45 Ethernet ports including
3 LAN ports (Ports 1 to 3)
1 LAN/WAN port (Port 4)
1 WAN port (Port 5)
Serial Interface RJ45 serial port
SIM Interface 2 SIM card slots with mini SIM card tray
Cellular Antenna 5 dBi external antennas with SMA connectors for 5G-NR
DI & DO Interfaces 2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.2 Digital Output (DO):
Open collector to 24V DC, 100mA max.

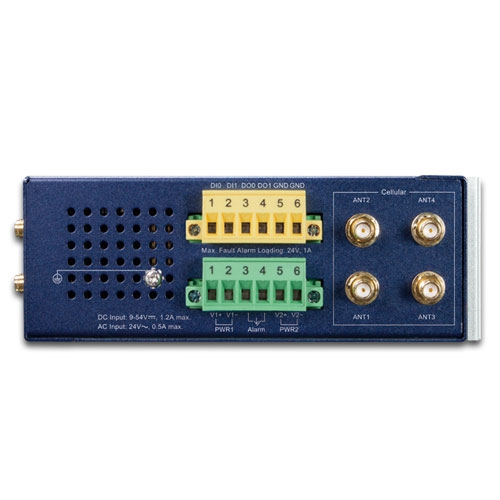

Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Reset Button < 5 sec: System reboot
> 5 sec: Factory default
Enclosure IP30 metal case
Installation DIN rail, desktop, wall-mounting
LED Indicators System:
P1 (Green)
P2 (Green)
Alarm (Red)
I/O (Red)Ethernet Interfaces (Port1-4 and WAN Port):
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)

Cellular SIM:
SIM1 and SIM2 (Green)

Cellular signal:
4 levels (Green)

Dimensions (W x D x H) 50 x 135 x 135 mm
Weight 0.8 kg
Power Requirements – DC 9~54V DC, 1.5A max.
Power Consumption 7 W / 23.9 BTU
Multi Band Supports
5G NR n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/
B32/B46/B66/B71
LTE TDD B34/B38/B39/B40/B41/B42/B43/B48
WCDMA B1/B2/B3/B4/B5/B8
GNSS GPS L1+L5 dual bands/GLONASS/BeiDou/Galileo/QZSS
Data Transmission Throughput 2.4Gbps (DL)/500Mbps (UL) for NR
1Gbps (DL)/200Mbps (UL) for LTE
42Mbps (DL)/5.76Mbps (UL) for HSPA+
Advanced Functions
VPN
  • IPSec/Remote Server (Net-to-Net, Host-to-Net)
  • GRE
  • PPTP Server
  • L2TP Server
  • SSL Server/Client (Open VPN)
VPN Tunnels Max. 60
VPN Throughput Max. 60Mbps
Encryption Methods DES, 3DES, AES or AES-128/192/256 encrypting
Authentication Methods MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Management
Basic Management Interfaces Web browser
SNMP v1, v2c
PLANET Smart Discovery utility/UNI-NMS supported
Secure Management Interfaces SSHv2, TLSv1.2, SNMP v3
System Log System Event Log
Others Setup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics
Standards Conformance
Regulatory Compliance CE, FCC
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
Storage Temperature: -40 ~ 85 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
