Industrial 5GHz 802.11ax 2400Mbps Wireless Access Point with 5 10/100/1000T LAN Ports.

The IAP-2400AX delivers the 5GHz band and more bandwidth to avoid signal interference and ensure the best Wi-Fi performance. It allows you to check e-mails and surf the Internet and simultaneously watch full high-definition (HD) video or any other multimedia application via one 5GHz band. Besides, many client users can be connected to Wi-Fi at the same time. The maximum number of client users is up to 150. Moreover, the Gigabit Ethernet port of the IAP-2400AX offers ultra-fast wired connections that utilize the maximum wireless bandwidth; therefore, users will experience a fast wireless speed of over 900Mbps. With the outstanding stability of high-speed wireless transmission, the IAP-2400AX can provide users with excellent experience in multimedia streaming with your mobile devices anywhere, anytime.

SKU: IAP-2400AX Category:

Product Description

Hardware Specifications

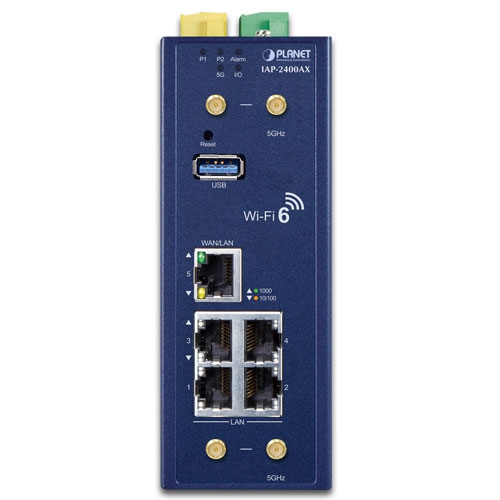

Interfaces 5 10/100/1000BASE-T RJ45 Ethernet ports including
4 LAN ports (Ports 1 to 4)
1 WAN/LAN port (Port 5)
Wireless Connector Built-in four RP-SMA female connectors
USB Port 1 USB 3.0 port

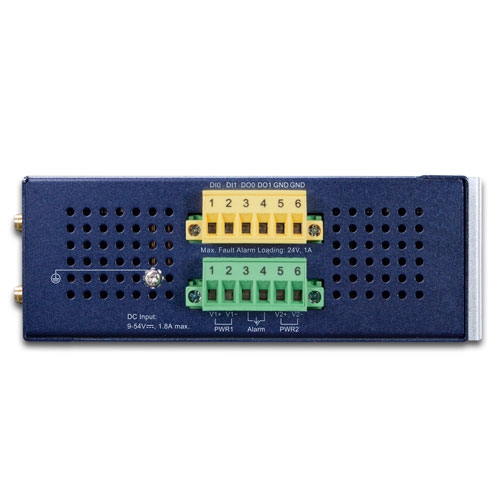

DI & DO Interfaces 2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.
2 Digital Output (DO):
Open collector to 24V DC, 100mA max.
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Reset Button < 5 sec: System reboot
> 10 sec: Factory default
Enclosure IP30 metal case
Installation DIN-rail, desktop, wall-mounting
Dimensions (W x D x H) 50 x 135 x 135 mm
Weight 787g
Power Requirements – DC 9~54V DC, 1.8A
Power Consumption Max. 5.9 watts/ 20BTU (No Loading at DC 54V)
Max.10.8 watts/ 36BTU (Full loading at DC 54V)
LED Indicators System:
P1 (Green)
P2 (Green)
Alarm (Red)
I/O (Red)
Ethernet Interfaces (Ports 1-4 LAN Port and Port 5 WAN/LAN Port):
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
Wi-Fi:
5GHz(Green)
Wireless Specifications
Standard IEEE 802.11a/an/ac/ax 5GHz (4Tx4R)
Band Mode 5GHz concurrent mode
Data Modulation 802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM)
802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
Antenna 4 dBi external antennas with RP-SMA male connectors for Wi-Fi
Frequency Range 5GHz
America FCC: 5.180~5.240GHz, 5.745~5.825GHz
Europe ETSI: 5.180~5.700GHz
Operating Channels 5GHz
America FCC:
Non-DFS: 36, 40, 44, 48, 149,153,157,161,165
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140

Europe ETSI:
Non-DFS: 36, 40, 44, 48
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140

*5GHz channel list may vary in different countries according to their regulations.

Channel Width 20MHz, 40MHz, 80MHz, 160MHz
Data Transmission Rates Transmit: 2400 Mbps* for 5 GHz
Receive: 2400Mbps* for 5 GHz

*The estimated transmission distance is based on the theory. The actual distance may vary in different environments.

Transmission Power 11a: 19.5dBm +/- 1.5dbm @54Mbps
11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20
17dBm@MCS7, HT40
11ac HT20: 20+/-1.5dBm @MCS8
11ac HT40: 17+/-1.5dBm @MCS9
11ac HT80: 14.5+/-1.5dBm @MCS9
11ax HT20: 20+/-1.5dBm @MCS9
11ax HT40: 17 +/- 1.5dBm @MCS9
11ax HT80: 14.5 +/- 1.5dBm @MCS11
Receiver Sensitivity 11a: -90Bm @54Mbps
11a/n: -85dBm @HT20, MCS7
-81dBm @HT40, MCS7
11ac: -90dBm +/- 2dBm @VHT20 MCS8
11ac: -85dBm +/- 2dBm @VHT40 MCS9
11ac: -68dBm +/- 2dBm @VHT80 MCS9
11ax: -61dBm +/- 2dBm @HE20 MCS11
11ax: -58dBm +/- 2dBm @HE40 MCS11
11ax: -55dBm +/- 2dBm @HE80 MCS11
Encryption Security WPA3 Personal,WPA2/WPA3 Personal
WPA2 Personal (AES) ,WPA2 Personal (TKIP),WPA2 Personal (TKIP+AES)
WPA/WPA2 Personal (AES), WPA/WPA2 Personal (TKIP), WPA/WPA2 Personal (TKIP+AES)
WPA2 Enterprise, WPA/WPA2 Enterprise
Management Functions
Basic Management Interfaces Web browser
SNMP v1, v2c
PLANET Smart Discovery utility and NMS controller supported
Secure Management Interfaces TLS 1.1, TLS 1.2, TLS 1.3
SNMP v3
Operation Modes Access Point (default)
Gateway
Repeater
LAN Static IP/* DHCP Client
WAN Static IP
Dynamic IP
PPPoE/PPTP/L2TP
VLAN IEEE 802.1Q VLAN (VID: 1~4094)
SSID-to-VLAN mapping to up to 4 SSIDs
Wireless Security Enable/Disable SSID Broadcast
Wireless MAC address filtering
User Isolation
Max. SSID 4
Max. Wireless Clients 150 (100 is suggested, depending on usage)
Wi-Fi Advanced Auto Channel Selection
5-level Transmit Power Control :
– Max (100%)
– Efficient (75%)
– Enhanced (50%)
– Standard (25%) or Min (15%)
Client Limit Control
Coverage Threshold
*Wi-Fi channel analysis chart
Seamless Roaming
Beamforming
BSS Coloring
5GHz WLAN Partition
RTS Threshold
Wireless Roaming IEEE 802.11k, 802.11v, and 802.11r
Wireless QoS Supports Wi-Fi Multimedia (WMM)
System Management Setup wizard
Remote management through PLANET DDNS/ Easy DDNS
Configuration backup and restore
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
Supports Captive Portal, RADIUS Server/Client (Gateway mode)
Diagnostics
Status Monitoring Dashboard
System status/service
Statistics
Connection status
Event Management Remote System Log
Local Event Log
Self-healing Supports auto reboot settings per day/hour
Standards Conformance
Central Management
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
Storage Temperature: -40 ~ 75 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
