Planet IAP-1800AX Access Point – Price in Qatar

Industrial Dual Band 802.11ax 1800Mbps Wireless Access Point with 5 10/100/1000T LAN Ports.

The IAP-1800AX delivers the dual band and more bandwidth to avoid signal interference and ensure the best Wi-Fi performance. It allows you to check e-mails and surf the Internet via the 2.4GHz band and simultaneously watch full high-definition (HD) video or any other multimedia application via one 5GHz band. Besides, many client users can be connected to Wi-Fi at the same time. The maximum number of client users is up to 150. Moreover, the Gigabit Ethernet port of the IAP-1800AX offers ultra-fast wired connections that utilize the maximum wireless bandwidth; therefore, users will experience a fast wireless speed of over 750Mbps. With the outstanding stability of high-speed wireless transmission, the IAP-1800AX can provide users with excellent experience in multimedia streaming with your mobile devices anywhere, anytime.

SKU: IAP-1800AX Category: Planet Switches

Product Description

Hardware Specifications

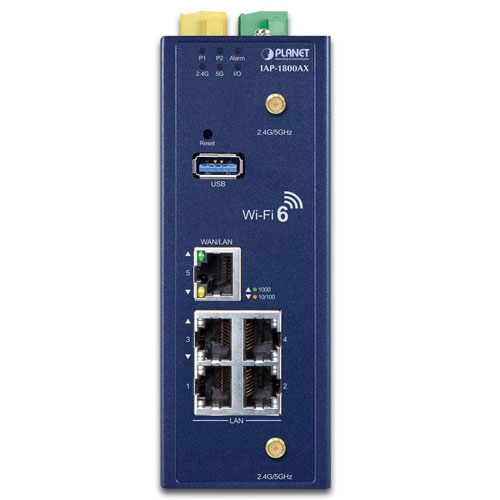

Interfaces	5 10/100/1000BASE-T RJ45 Ethernet ports including 4 LAN ports (Ports 1 to 4) 1 WAN/LAN port (Port 5)
Wireless Connector	Built-in two RP-SMA female connectors
USB Port	1 USB 3.0 port
DI & DO Interfaces	2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24V DC, 100mA max.

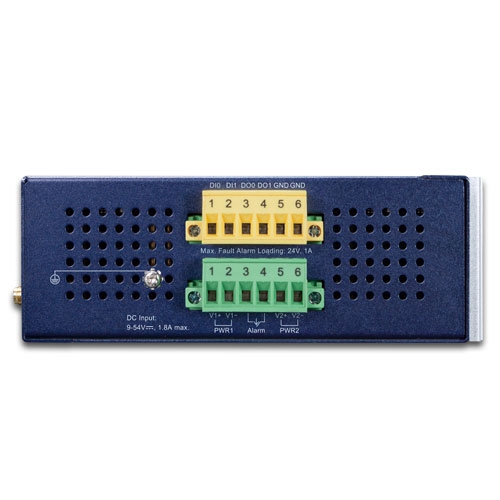

Connector	Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Reset Button	< 5 sec: System reboot > 10 sec: Factory default
Enclosure	IP30 metal case
Dimensions (W x D x H)	50 x 135 x 135 mm
Weight	773g
Power Requirements – DC	9~54V DC, 1.8A
Power Consumption	Max. 6.4 watts/ 21BTU (No Loading at DC 54V) Max.10.8 watts/ 36BTU (Full loading at DC 54V)
Installation	DIN-rail, desktop, wall-mounting
LED Indicators	System: P1 (Green) P2 (Green) Alarm (Red) I/O (Red) Ethernet Interfaces (Ports 1-4 LAN Port and Port 5 WAN/LAN Port): 1000 LNK/ACT (Green) 10/100 LNK/ACT (Amber) Wi-Fi: 2.4GHz(Green) 5GHz(Green)
Wireless Specifications
Wi-FI Standard	IEEE 802.11a/n/an/ac/ax 5GHz (2Tx2R) IEEE 802.11g/b/n/ax 2.4GHz (2Tx2R)
Band Mode	2.4GHz & 5GHz concurrent mode
Data Modulation	802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM) 802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK)
Antenna	4 dBi 2.4GHz and 5GHz dual-band external antennas with RP-SMA male connectors for Wi-Fi
Frequency Range
Operating Channels	2.4GHz America FCC: 1~11 Europe ETSI: 1~13 5GHz America FCC: Non-DFS: 36, 40, 44, 48, 149,153,157,161,165 DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 Europe ETSI: Non-DFS: 36, 40, 44, 48 DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 5GHz channel list may vary in different countries according to their regulations.
Channel Width	20MHz, 40MHz, 80MHz
Data Transmission Rates	Transmit: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz Receive: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz *The estimated transmission distance is based on the theory. The actual distance may vary in different environments.
Transmission Power	11b: 23dbm+/- 1.5dbm @11Mbps 11g: 20dbm+/- 1.5dbm @54Mbps 11g/n: 20dBm +/- 1.5dbm @MCS7, HT20 17dBm@MCS7,HT40 11a: 19.5dBm +/- 1.5dbm @54Mbps 11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20 17dBm@MCS7, HT40 11ac HT20: 20+/-1.5dBm @MCS8 11ac HT40: 17+/-1.5dBm @MCS9 11ac HT80: 14.5+/-1.5dBm @MCS9 11ax HT20: 20+/-1.5dBm @MCS9 11ax HT40: 17 +/- 1.5dBm @MCS9 11ax HT80: 14.5 +/- 1.5dBm @MCS11
Receiver Sensitivity	11b: -99dBm @11Mbps 11g: -95dBm @54Mbps 11g/n: -90dBm @HT20, MCS7 -86dBm @HT40, MCS7 11a: -90Bm @54Mbps 11a/n: -85dBm @HT20, MCS7 -81dBm @HT40, MCS7 11ac: -90dBm +/- 2dBm @VHT20 MCS8 11ac: -85dBm +/- 2dBm @VHT40 MCS9 11ac: -68dBm +/- 2dBm @VHT80 MCS9 11ax: -61dBm +/- 2dBm @HE20 MCS11 11ax: -58dBm +/- 2dBm @HE40 MCS11 11ax: -55dBm +/- 2dBm @HE80 MCS11
Encryption Security	WPA3 Personal, WPA2/WPA3 Personal WPA2 Personal (AES), WPA2 Personal (TKIP), WPA2 Personal (TKIP+AES) WPA/WPA2 Personal (AES), WPA/WPA2 Personal (TKIP), WPA/WPA2 Personal (TKIP+AES) WPA2 Enterprise, WPA/WPA2 Enterprise
Management Functions
Basic Management Interfaces	Web browser SNMP v1, v2c PLANET Smart Discovery utility PLANET NMS controller supported
Secure Management Interfaces	TLS 1.1, TLS 1.2, TLS 1.3 SNMP v3
Operation Modes	Access Point (default) Gateway Repeater
LAN	Static IP/* DHCP Client
WAN	Static IP Dynamic IP PPPoE/PPTP/L2TP
VLAN	IEEE 802.1Q VLAN (VID: 1~4094) SSID-to-VLAN mapping to up to 4 SSIDs
Wireless Security	Enable/Disable SSID Broadcast Wireless MAC address filtering User Isolation
Max. SSID	8 (4 per radio)
Max. Wireless Clients	150 (100 is suggested, depending on usage)
Wi-Fi Advanced	Auto Channel Selection 5-level Transmit Power Control : – Max (100%) – Efficient (75%) – Enhanced (50%) – Standard (25%) or Min (15%) Client Limit Control Coverage Threshold *Wi-Fi channel analysis chart Seamless Roaming Beamforming BSS Coloring 2.4GHz WLAN Partition 5GHz WLAN Partition RTS Threshold
Wireless Roaming	IEEE 802.11k, 802.11v, and 802.11r
Wireless QoS	Supports Wi-Fi Multimedia (WMM)
System Management	Setup wizard Remote management through PLANET DDNS/ Easy DDNS Configuration backup and restore Supports UPnP Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN Pass-through Supports Captive Portal, RADIUS Server/Client (Gateway mode) Diagnostics
Status Monitoring	Dashboard System status/service Statistics Connection status
Event Management	Remote System Log Local Event Log
Self-healing	Supports auto reboot settings per day/hour
Central Management	Applicable controllers: – NMS-500, NMS-1000V – Wireless Switch: WS-1032P, WS-2864PVR – VPN Gateway: VR-300 series, IVR-300 series – PLANET CloudViewer App
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Environment
Operating	Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing)
Storage	Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing)
