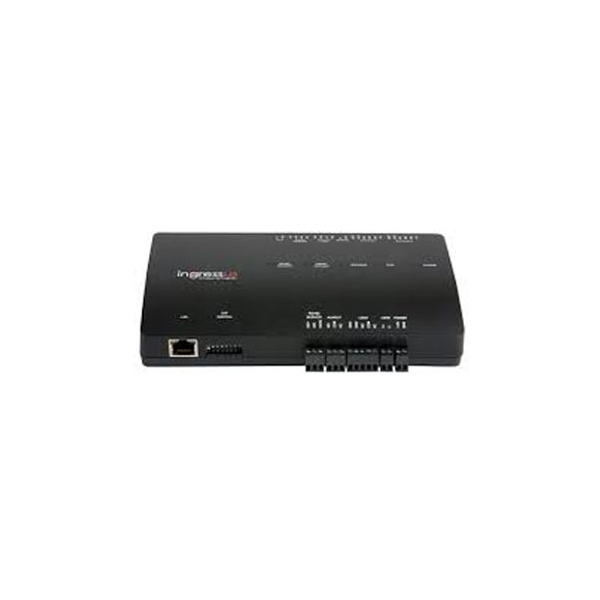

FingerTec Ingressus IV Access Controller

Ingressus IV is FingerTec’s latest advance access controller which supports access control up to 4-doors. In short, Ingressus IV can be described as a 4-In door controller. A total of 4 Wiegand input ports is available in Ingressus

SKU: FingerTec Ingressus IV Category:

Product Description

FingerTec Ingressus IV Access Controller

Ingressus IV is FingerTec’s latest advance access controller which supports access control up to 4-doors. In short, Ingressus IV can be described as a 4-In door controller. A total of 4 Wiegand input ports is available in Ingressus

Surge Protection

Ingressus provides 3 types of extra protection for your security hardware i.e. Over Current Protection, Over Voltage Protection and Reversal Protection; extending the life-span of your products.

Get Flexibility with Ingressus

Ingressus supports several different Wiegand formats as well as various card terminal formats, providing you with flexibility for your security system.

Real-Time Door Status & Event Monitoring

With the real-time door status & event monitoring, door opening and door closing activities can be supervised at all times.

Multi-card Operation in Ingressus

Ingressus offers multicard operations to manage high-secured areas. Access is only allowed when these multiple cards are presented at the specific device.

Antipassback Feature for Extra Security

Important in a security system, this feature is to ensure that no single person leaves a premise untraced.

Duress Mode for Emergencies

Ingressus is equipped with a duress mode to provide alternatives to users in an emergency

Connect All Security Devices

Link all your security devices under one management, including CCTV, fire alarms, and building automation systems (BAS) for a total security solution.

Readily Available I/O Ports

For a complete security solution, the Ingressus provides readily available ports for alarms, sensors, exit buttons, and other security accessories.

Data Communication via IP or RS485

Ingressus offers easy data communication using the most commonly used protocols which are TCP/IP and RS485.

One Stop Verification

Ingressus doesn’t only centralize devices, it also allows a centralized verification for an exceptional security no other brands can provide.

Secure Your Premise with the Interlock Function

One door opens, another closes – that’s the logic of interlocking, providing you with tighter security.

SDK for Your Convenience

Integrate Ingressus into your existing access control software or develop your own customized software with our SDK, free of charge.

SPECIFICATIONS
MODEL Ingressus I Ingressus II Ingressus IV
BASIC
 Dimension (L X W X H), mm                                  186 x 106 x 36 226 x 106 x 36
 Power input (V)                                       12V DC
 Operating temperature (°C)                                         0 – 55
 Operating humidity (%)                                         Oct-80
 CPU                                   32-bit, 400MHz
 Flash Memory (MB)                                            128
 SDRAM (MB)                                             32
 Polarity protection                                             Yes
STORAGE
 Fingerprint                                            3000
 Cards                                            30000
 Passwords                                            30000
 Transactions                                            100000
COMMUNICATIONS
 Communications with Server TCP/IP, RS485
 Quantity of terminal 2 4 4
 Communication with terminals 2 x 26-bit Wiegand input. Each for 1 slave terminal (1 x RS485 input to support RS485 network) 4 x 26-bit Wiegand input. Each for 1 slave terminal (1 x RS485 input to support RS485 network) 4 x 26-bit Wiegand input. Each for 1 slave terminal (1 x RS485 input to support RS485 network)
(max 2 units) (max 4 units) (max 8 units)
INPUT
 Push release button 1 2 4
 Door sensor 1 2 4
 AUX 1 2 4
 Types of AUX input supported Motion detector, passive DIR detector, curtain passive infrared detector, pet immunity PIR detector, two beam digital active infrared detector, heat detector
OUTPUT
 Door lock (12VDC 10A form C relay) 1 2 4
 AUX output (30VDC 2A Form C relay) 1 2 4
 Types of AUX output supported Gas detector and compatible sensors, piezo strobe siren, electronic siren
ACCESS CONTROL FEATURES
 Main Features Door opening time (0-999s), Interlocking (lngressus II & IV only), Anti-pass back (Local only), Multi card unlocking, First card unlocking, Time zone (50), Holiday time zone, Permanent door release/ lock time zone, Day light saving time zone, Continuous verification of users
 Security Features Door force open alarm, Door open time out alarm, Fire linkage, Duress alarm, Door status and event (51 types)
