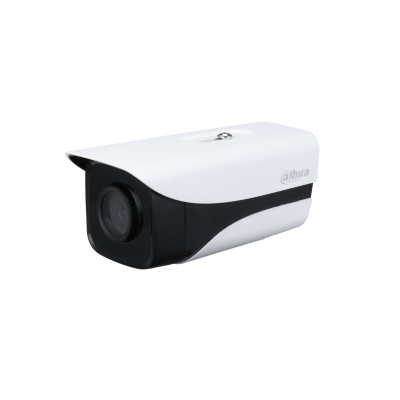

Dahua IPC-HFW3441M-AS-SFC-I2 4MP Anti-oil IR Fixed focal Bullet WizSense Network Camera Price in Qatar

Dahua IPC-HFW4230M-4G-AS-I2 2MP 4G IR Bullet Network Camera Price in Qatar

Add to cart
View details

Dahua IPC-HFW4230M-4G-AS-I2 2MP 4G IR Bullet Network Camera Price in Qatar

> 1/2.9” 2Megapixel progressive CMOS

> H.265&H.264 dual-stream encoding

> 25/30fps@2M(1920×1080)

> Day/Night(ICR), 3DNR, AWB, AGC, BLC

SKU: IPC-HFW4230M-4G-AS Category:

Product Description

Technical Specification
Model DH-IPC-HFW4230M-4G-AS-I2
Camera
Image Sensor 1/2.9” 2Megapixel progressive scan CMOS
Effective Pixels ) 1920(H) x 1080(V)
RAM/ROM 256MB/32MB
Scanning System Progressive
Minimum Illumination 0.04Lux/F2.0( Color,1/3s,30IRE)

0.22Lux/F2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)
S/N Ratio More than 56dB
IR Distance Distance up tp 40m (131.2ft)
IR On/Off Control Auto/ Manual
IR LEDs 2
Lens
Lens Type Fixed
Mount Type M12
Focal Length 3.6mm (6mm optional)
Max. Aperture F2.0
Angle of View H: 82.5° (51.5°), V: 44° (29.5°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance 0.9m(2m)

29.5ft(6.56ft)
DORI

Distance

 Lens Detect Observe Recognize Identify
3.6mm 53m(174ft) 21m(69ft) 10m(33ft) 5m(17ft)
6mm 80m(262ft) 32m(105ft) 16m(52ft) 8m(26ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range N/A
Intelligence
Event Trigger Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly


IVS Tripwire, Intrusion
Video
Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265/H.264
Streaming Capability 2 Streams
Resolution Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly


Frame Rate Main Stream: 1080P@25fps
Sub Stream: D1@25fps
Bit Rate Control CBR/VBR
Bit Rate H.264: 32~10240Kbps H.265: 12~6400Kbps
Day/Night Auto ICR
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization

(EIS)

 N/A
Smart IR Support
Defog N/A
Digital Zoom N/A
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Mobile Communication 4G
Operating band Model 1: TDD-LTE:Band38/39/40/41 FDD-LTE:Band1/3/5/8 WCDMA:Band1/8 TD-SCDMA:Band34/39 EVDO/CDMA1X:BC0 GSM:Band3/8 Model 2: FDD-LTE:Band1/2/3/4/5/7/8/20 UMTS:Band1/2/5/8 GSM:850/900/1800/1900


Protocol HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP; FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP; NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS


Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS Local PC for instant recording Mirco SD card 256GB


Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B


Interface
Audio Interface 1/1 channel In/Out
Alarm 2 channel In: 500mA 5VDC

2 channel Out: 300mA 12VDC
Electrical
Power Supply DC12V±30%
Power Consumption 3.6W, 9.5W(IR on); 6W(4G on, IR off)


Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH


Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH


Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal+Plastic
Dimensions 194.4mm×96.6mm×89.5mm (7.65”×3.8”×3.52”)
Net Weight 0.7kg (1.54lb)
Gross Weight 0.8kg (1.76lb)
Electrical
Power Supply DC12V±30%
Power Consumption 3.6W, 9.5W(IR on); 6W(4G on, IR off)
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal+Plastic
Dimensions 194.4mm×96.6mm×89.5mm (7.65”×3.8”×3.52”)
Net Weight 0.7kg (1.54lb)
Gross Weight 0.8kg (1.76lb)
