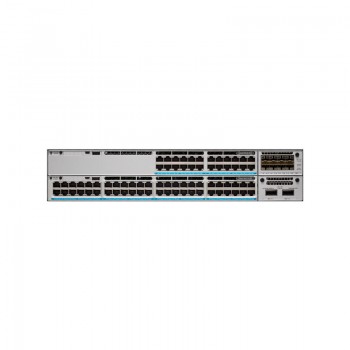

Cisco C9300-48UN-A Catalyst Switch Price in Qatar

Cisco C9300-48UN-A Catalyst Switch Price in Qatar

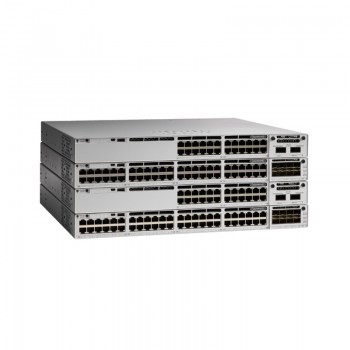

The Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform.

SKU: C9300-48UN-A Category:

Product Description

C9300-48UN-A Specification

Product Code C9300-48UN-A
Product Description Catalyst 9300 48-port of 5Gbps Network Advantage
Total 10/100/1000 or Multigigabit copper ports 48x 5 Gbps UPOE ports (100M, 1G, 2.5G, 5G)
Uplink Configuration Modular Uplinks
Default AC power supply 1100W AC
Available PoE power 645W
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches
Cisco StackWise-480 Yes
Cisco StackPower Yes
Default power supply PWR-C1-1100WAC-P
Switching capacity 640 Gbps
Stacking bandwidth 480 Gbps
Forwarding rate 476.19 Mpps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries 32,000
IPv6 routing entries 16,000
Multicast routing scale 8000
QoS scale entries 5120
ACL scale entries 5120
Packet buffer per SKU 16 MB buffer for 24- or 48-port Gigabit Ethernet modelst

32 MB buffer for 24 and 48-port Multigigabit

FNF entries 64,000 flow on 24- and 48-port Gigabit Ethernet models

128,000 flows on 24-port Multigigabit

DRAM 8 GB
Flash 16 GB
VLAN IDs 4094
Total Switched Virtual Interfaces (SVIs) 2000
Jumbo frames 9198 bytes
Total routed ports Catalyst per 9300 Series stack 448
Wireless bandwidth per switch Up to 96 Gbps on 48-port Gigabit Ethernet model
Mean time between failures – MTBF (hours) 198,647
Safety certifications





•UL 60950-1

•CAN/CSA-C222.2 No. 60950-1

•EN 60950-1

•IEC 60950-1

•AS/NZS 60950.1

•IEEE 802.3

Electromagnetic emissions certifications •47 CFR Part 15

•CISPR22 Class A

•EN 300 386 V1.6.1

•EN 55022 Class A

•EN 55032 Class A

•CISPR 32 Class A

•EN61000-3-2

•EN61000-3-3

•ICES-003 Class A

•TCVN 7189 Class A

•V-3 Class A

•CISPR24

•EN 300 386

•EN55024

•TCVN 7317

• V-2/2015.04

•V-3/2015.04

•CNS13438

•KN32

•KN35

•IEC 61000-6-1

•EN 61000-6-1

Environmental Reduction of Hazardous Substances

(ROHS) 5
