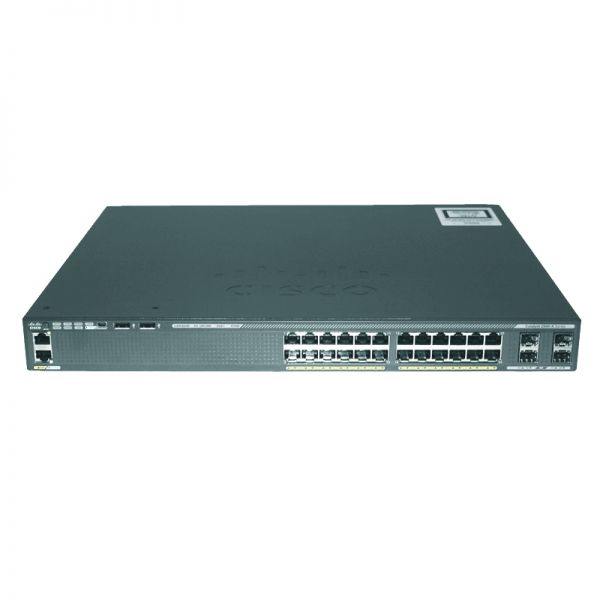

Cisco C1-C2960X-24TS-L Catalyst 2960-X Switches – Price in Qatar
Cisco C1-C2960X-24TS-L Catalyst 2960-X Switches – Price in Qatar
Cisco ONE Catalyst 2960-X 24 GigE, 4 x 1G SFP, LAN Base
Product Description
C1-C2960X-24TS-L Specification |
|
| Capacity | |
| Type | Active VLANs |
| Value | 1023 |
| Flash Memory | |
| Installed Size | 128 MB |
| Performance | |
| Type | Switching capacity |
| Value | 216 Gbps |
| Ports | |
| Qty | 24 |
| Type | 10/100/1000 |
| Ports (2nd) | |
| Qty | 4 |
| Type | Gigabit SFP |
| RAM | |
| Installed Size | 512 MB |
| Service & Support Details | |
| Response Time | Next business day |
| Networking | |
| Type | Switch |
| Remote Management Protocol | CLI, HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Status Indicators | Link/activity, Port duplex mode, Port transmission speed, Status, System |
| Ports Qty | 24 |
| Features | Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BOOTP support, Broadcast Storm Control, Cisco EnergyWise technology, Cisco FlexStack Plus, Class of Service (CoS), DHCP relay, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Full duplex capability, Hot Standby Router Protocol (HSRP) support, IGMP snooping, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, MAC Address Notification, Management Information Base (MIB), MLD snooping, Multicast Storm Control, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Strict Priority Queuing (SPQ), Syslog support, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Unicast Reverse Path Forwarding (URPF), Unicast Storm Control, VLAN support |
| Stackable | Stackable |
| Max Units In A Stack | 8 |
| Subcategory | Network hubs and switches |
| Manageable | Yes |
| Form Factor | Desktop, Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| Subtype | Gigabit Ethernet |
| Interface Provided | |
| Qty | 4 |
| Type | USB |
| Connector Type | Type A |
| Comments | Management |
| Miscellaneous | |
| Compliant Standards | AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, RoHS, RoHS 2011/65/EU, UL 60950-1 Second Edition, VCCI Class A |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| MTBF | 564,910 hours |
| Height (Rack Units) | 1 |
| Color Category | Gray |
| Service | |
| Support Details Type | Technical support |
| Support Details Service Included | Consulting |
| Support Details Full Contract Period | 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 – 95% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 – 95% (non-condensing) |
| Header | |
| Compatibility | PC |
| Manufacturer | Cisco Systems |
| Packaged Quantity | 1 |
| Product Line | Cisco ONE Catalyst |
| Model | 2960X-24TS-L |
| Brand | Cisco |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 28 Watt |
| Nominal Voltage | AC 120/230 V |
| Features | Redundant Power System (RPS) connector |
| Power Redundancy | Optional |
| Type | Internal power supply |
| Processor | |
| Type | APM86392 |
| Clock Speed | 600 MHz |
| Slot Provided | |
| Type | Stacking Module slot |
| Total Qty | 1 |
| Free Qty | 1 |
| Software | |
| Type | Cisco IOS LAN Base |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 11 in |
| Height | 1.8 in |
| Weight | 8.82 lbs |
| Service & Support | |
| Type | Limited lifetime warranty |
