Belden-8772

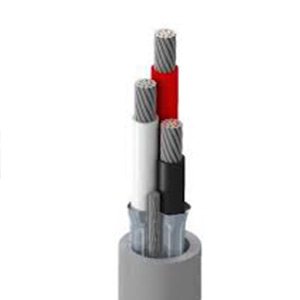

The 8772 060U1000 is a 3-conductor Shielded Cable with 20AWG stranded tinned copper conductors and polyethylene insulation. This multi-conductor cable comes with a Beldfoil® aluminum foil-polyester tape shield and chrome PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O’s to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
  • 200.169N Maximum recommended pulling tension
  • 32.81Ω/km at 20°C Nominal conductor DC resistance (DCR)
  • 88.587pF/m Nominal capacitance conductor to conductor

Applications

Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio

SKU: Belden-8772 Category:

Product Description

Belden-8772

The 8772 060U1000 is a 3-conductor Shielded Cable with 20AWG stranded tinned copper conductors and polyethylene insulation. This multi-conductor cable comes with a Beldfoil® aluminum foil-polyester tape shield and chrome PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O’s to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
  • 200.169N Maximum recommended pulling tension
  • 32.81Ω/km at 20°C Nominal conductor DC resistance (DCR)
  • 88.587pF/m Nominal capacitance conductor to conductor

Applications

Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
