Belden 8761 Price in Qatar

Belden 8761 Price in Qatar

Belden-8761

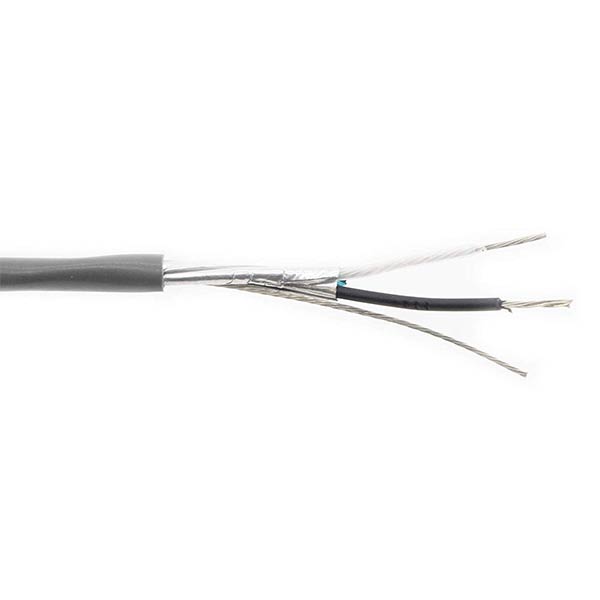

The 8761 060U500 from Belden is a multi conductor single pair cable. This cable is UL recognized and CSA certified.

SKU: Belden-8761 Category:

Product Description

The 8761 060U500 from Belden is a multi conductor single pair cable. This cable is UL recognized and CSA certified.
  • 22AWG stranded (7×30) tinned copper conductors
  • Polyethylene insulation
  • Overall Beldfoil shield (100% coverage)
  • Polyvinyl chloride (PVC) jacket
  • Overall nominal diameter of 0.175inch
  • Operating temperature range from -20°C to 60°C
  • Nominal characteristic impedance of 64ohm
  • Nominal conductor DC resistance of 16ohm/1000ft at 20°C
  • Maximum operating voltage of 300Vrms (UL AWM style 2092)
  • Maximum recommended current of 2.9A per conductor at 25°C

Applications

Industrial
