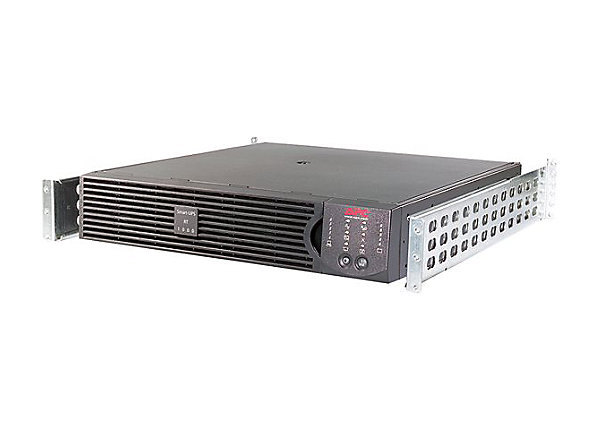

APC Smart-UPS RT 1000VA 230V – Marine – SURT1000XLIM Price in Qatar

APC Smart-UPS RT 1000VA 230V – Marine – SURT1000XLIM Price in Qatar

SKU: SURT1000XLIM Category:

Product Description

APC Smart-UPS RT 1000VA 230V – Marine

  • High availability, ruggedized power protection for shipboard and other transportation applications.

  • Includes: CD with software, Relay board, Smart UPS signalling RS-232 cable, User Manual





Overview



SURT1000XLIM Features

APC Smart-UPS RT 1000VA 230V – Marine
High availability, ruggedized power protection for shipboard and other transportation applications.
Includes: CD with software, Relay board, Smart UPS signalling RS-232 cable, User Manual

Marine Features & Benefits

Manageability

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

SmartSlot

Customize UPS capabilities with management cards.

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Serial connectivity

Provides management of the UPS via a serial port.

Serviceability

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Easy to install

Innovative design allows for fast, easy installation by almost anybody.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Technical support

Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.

Availability

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Detailed Tech Specification



Output

Output power capacity

700Watts / 1.0 kVA

Max Configurable Power (Watts)

700Watts / 1.0 kVA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

88.0 %

Output Voltage Distortion

Less than 3%

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz user adjustable +/- 0.1

Output Frequency (not synced)

60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

Output Connections

(2) IEC Jumpers (Battery Backup)
(6) IEC 320 C13 (Battery Backup)

Bypass

Built-in Bypass

Input

Nominal Input Voltage

230V

Input frequency

50/60 Hz +/- 5 Hz (auto sensing)

Input Connections

IEC-320 C14

Cord Length

2.5meters

Input voltage range for main operations

180 – 280V

Input voltage adjustable range for mains operation

100 – 280V

Number of Power Cords

1

Efficiency at Full Load

88.0 %

Other Input Voltages

220, 240

Input Power Factor at Full Load

1.0

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules

1

Typical recharge time

3hour(s)

Replacement Battery

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Extendable Run Time

1

Communications & Management

Interface Port(s)

DB-9 RS-232, SmartSlot

Pre-Installed SmartSlot™ Cards

Control panel

LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Optional

Surge Protection and Filtering

Surge energy rating

420Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

432mm, 43.2CM

Maximum Width

85mm, 8.5CM

Maximum Depth

483mm, 48.3CM

Rack Height

2U

Net Weight

23.0KG

Shipping weight

27.8KG

Shipping Height

286mm, 28.6CM

Shipping Width

630mm, 63.0CM

Shipping Depth

594mm, 59.4CM

Color

Black

Units per Pallet

6.0

Environmental

Operating Temperature

0 – 55 °C

Operating Relative Humidity

0 – 95 (non-condensing) %

Operating Elevation

0-3000meters

Storage Temperature

-20 – 50 °C

Storage Relative Humidity

0 – 95 (non-condensing) %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

324.0BTU/hr

Protection Class

IP 20
